Vendor: ONKA

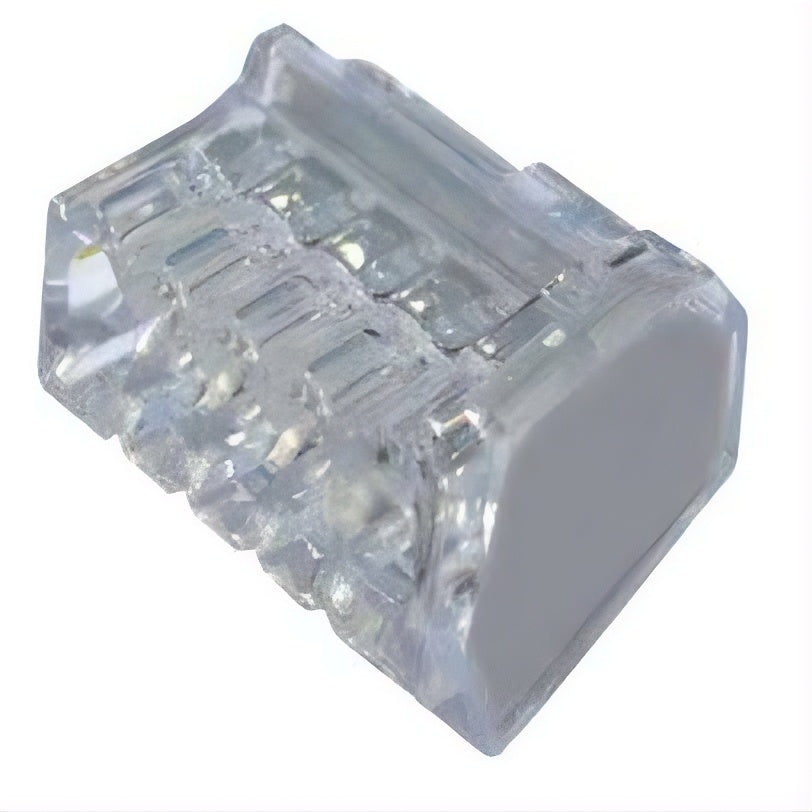

2.5 mm² TRANSPARENT 5-POLE PLUG CONNECTOR

Barcode: 80008628
€0,30 €0,24 excl. VAT
€0,30 €0,24 excl. VAT
100 in stock
All items are in stock and shipped from the Czech Republic. Delivery takes 3–8 days.
  • Description
  • Payment methods
  • Warranty

Transparent Push-in terminal block for 5 conductors, ONKA

Compact tool-free quick connectors from ONKA's Push-in series enable fast, safe, and reliable connection of up to five solid copper conductors with a cross-section of up to 2.5 mm² without the use of tools. The fully transparent housing allows immediate visual verification of correct wire insertion. The terminal has an integrated test connection for safe measurement of network parameters. Thanks to the very low profile, only 9.5 mm in height, it saves valuable space in distribution boxes.

Technical specifications

  • Product type: Quick connector for box mounting

  • Connection technology: Tool-free / Push-in

  • Number of poles (number of connection points): 5

  • Maximum conductor cross-section: 2.5 mm²

  • Housing color: Transparent

  • Type of conductor: Solid conductor (wire)

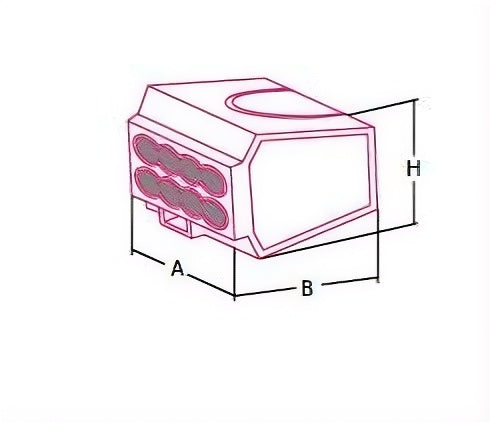

Dimensions

  • Dimension A (Width): 21.1 mm

  • Dimension B (Depth): 19.7 mm

  • Dimension H (Height): 9.5 mm
