DS-48 pulse counter – 2× display, 2 inputs, relay output

Product description

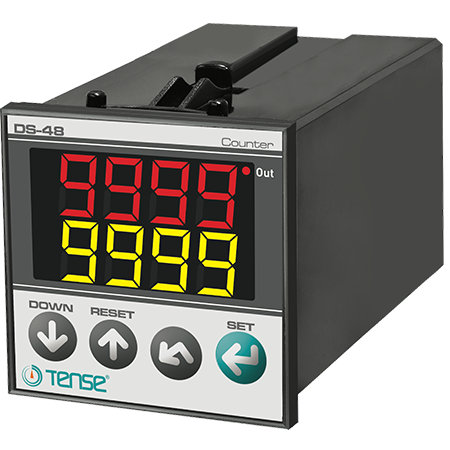

The DS-48 pulse counter is a universal two-input panel counter equipped with two 4-digit LED displays (current value + target value). It enables counting, counting down, and processing signals from mechanical switches, PNP/NPN inductive sensors, and incremental encoders. Due to its wide range of input and output functions, it is suitable for industrial automation systems, production lines, measuring stations, and process control.

Main features

• 2× 4-digit 7-segment LED display

• 1× output relay OUT + SSR output

• Multiple operating modes: counting, counting down, addition from multiple inputs, control via second input

• Support for mechanical switches, PNP/NPN sensors, and encoders

• Selectable input frequency: 20 / 50 / 2500 / 7500 Hz

• Password protection of settings

• EEPROM memory – data retention during power loss

• Option to set OFFSET and decimal comma

• Automatic return of last value after power loss

Functions

Input functions (7 modes):

• Counting up

• Counting down

• Addition with two inputs simultaneously

• Pause controlled by second input

• Input negation

• Counting on rising/falling edge

• Combinations: addition from one edge, subtraction from the other, negation, etc.

Output functions (9 modes):

• Relay activation upon reaching target

• Hold until RESET

• Pulse output 0.1–999.9 s

• Control via SSR output (NPN)

Technical specifications

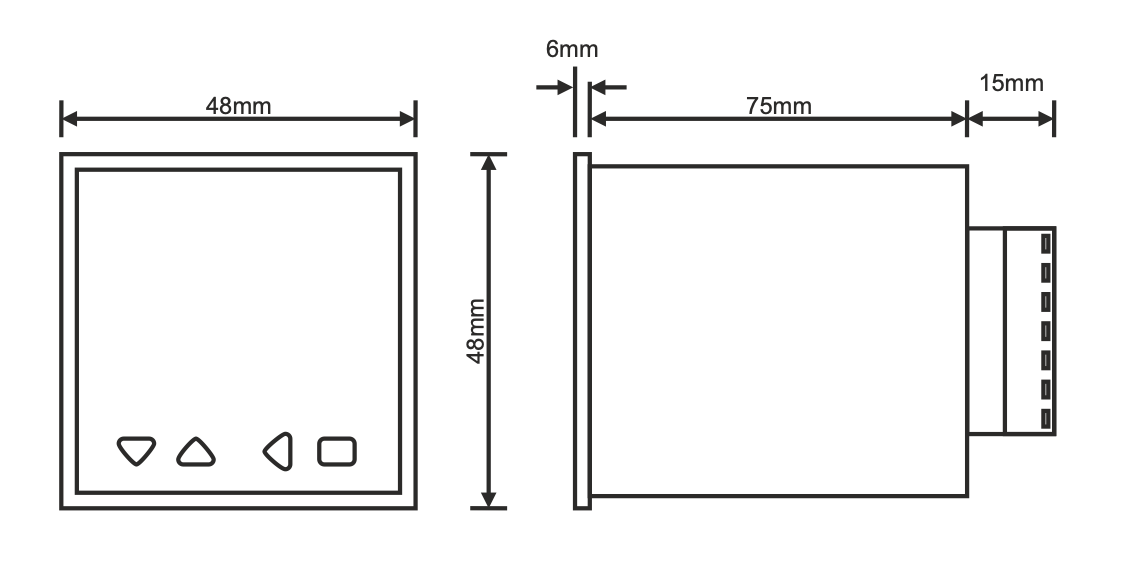

Display and dimensions

• Dimensions: 48 × 48 × 96 mm

• Mounting hole: 44 × 44 mm

• Display: 2× 4-digit LED

Inputs

• Number of inputs: 2

• Input types: mechanical switch, PNP/NPN sensor, encoder output NPN/PNP/totem-pole

• Input voltage: 5–30 V

• Max. input frequency: 7500 Hz

• Selectable frequency: 20 / 50 / 2500 / 7500 Hz

• Reset input: PNP, min. 10 ms, terminal 12

• Sensor power supply: 12 VDC / 50 mA (max)

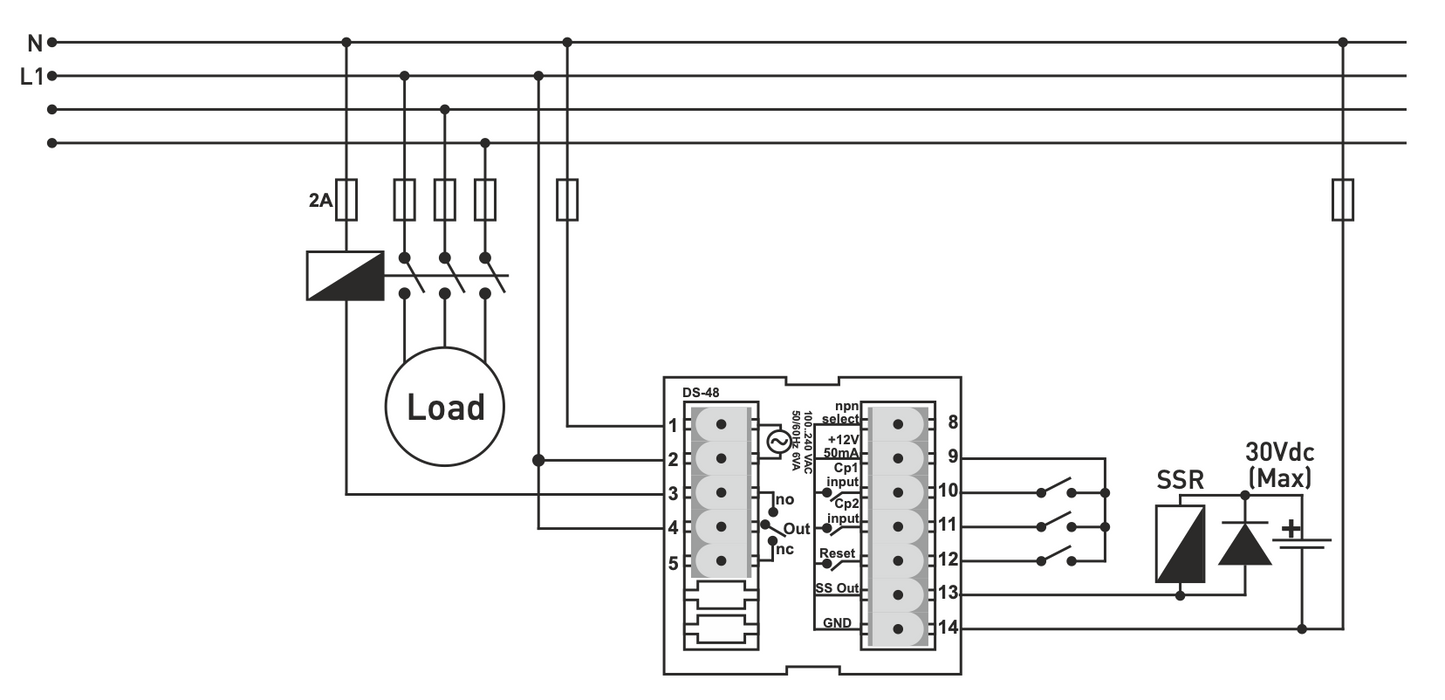

Outputs

• 1× SPDT relay 250 VAC, 2 A (resistive load) – COM (4), NO (3), NC (5)

• 1× SSR control (NPN, max. 100 mA, 30 V) – terminals 13 (SSout), 14 (GND)

Power supply

• 100–240 V AC, 50/60 Hz

• Power consumption: < 8 VA

Operating conditions

• Operating temperature: –20 °C to +55 °C

• Max. altitude: 2000 m

Special features

• EEPROM memory stores all settings and current counts after power loss

• Adjustable OFFSET of counted values

• Password protection against unwanted parameter changes

• Option to select decimal comma (0 / 0,0 / 0,00 / 0,000)

Installation recommendations

• Use shielded and twisted signal cables, ground the shield

• Separate signal wires from power and high-current cables

• Use a fuse F250 mA / 250 VAC on the power input

• Protect the device from moisture, vibrations, dust, and extreme temperatures

• For mechanical switches, it is recommended to set the input frequency to 20 Hz

• When using two inputs:

• Mode Phs4 → max. ¼ input frequency

• Modes 1u2u, 1u2d, Phs2 → max. ½ input frequency
