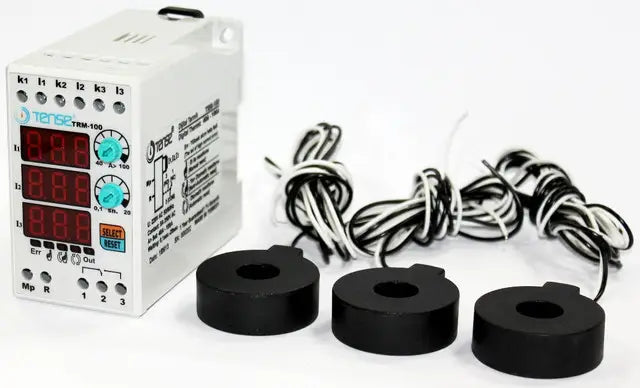

Digital load relay TRM-12 – 3-phase, 0.1–25 A, LED display, timer

Product description

The digital thermal relay TENSE TRM-12 is designed for protecting loads from damage caused by high currents.
\nThey allow adjustment of overload value, fault delay time, and operating mode.

They have internal current transformers and a 3×3-digit LED display for clear operation monitoring.

Main functions

• Adjustable overload value: 0.1–25 A

• Fixed current asymmetry: 50%

• Adjustable fault delay time: 0.1–20 s

• Operating modes: Manual, Semi-automatic, Automatic

• 3-phase operation with built-in current transformers

• LED status indication: OUT, ERR

• Display range: 3×3 digits + 5 LEDs

Operating mode

• After power is connected, the relay turns on and activates the output contact, the OUT indicator lights up.

• When the set overload value is exceeded, the delay countdown starts and ERR lights up.

• After the time expires, the relay switches off, the output contact switches, and OUT turns off.

• The relay resets automatically or manually depending on the selected mode:

  • Manual: manual reset required after fault

  • Semi-automatic: automatic reset 3×, then manual reset

  • Automatic: automatic reset on every fault

Asymmetry 50%

• If the difference between the highest and lowest phase current exceeds 50%, the relay enters asymmetry fault mode.

• Fault is indicated by flashing displays and ERR indicator.

• Manual reset is required to return.

• Current below 2 A is not monitored.

Technical parameters

• Power supply: 150–260 V AC, 50/60 Hz

• Power consumption: < 6 VA

• Operating temperature: -20 °C to +55 °C

• Display: 3×3 digits, 5 LEDs

• Overload adjustment: 0.1–25 A

• Delay time: 0.1–20 s

• Connection type: clamps

• Output contacts: 5 A / 250 V AC

• Wire cross-section: 2.5 mm²

• Mounting: DIN rail

• Weight: max. 250 g

• Altitude: < 2000 m

Application

• Automatic disconnection of consumers when maximum current is exceeded

• Protection of motors, heating elements, transformers, and other 3-phase devices

• Prevention of device damage under asymmetric phase load
