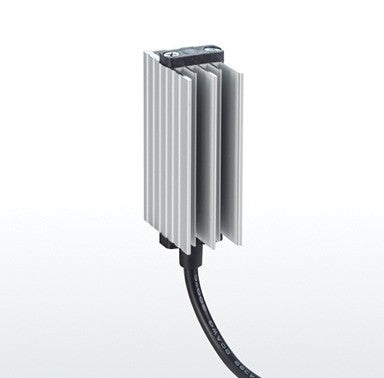

Mini PTC 15W switch cabinet heater, MPHT15, Plastim

Mini electric (PTC heating element, posistor heater) distribution heater with anodized aluminum heat sink and current overload protection, for installation on DIN rail with power 15 W, 110-220 volts AC or DC, MPHT15, Plastim - made in Turkey.

• Heating power: 15W

• Operating voltage: 100-250V AC/DC

• Maximum current: 2A

• Heating element type: Self-regulating PTC resistor

• Overload protection: Electronic thermal overload relay

• Electrical connection: Lead cable 30 cm, NLE

• IEC protection class: Class II

• Protection level: IP20

• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heatsink: Anodized aluminum profile

• Mounting: on a 35mm DIN rail

• Mounting position: Best efficiency in vertical position

• External dimensions: 60x50x27mm

• Weight: 0.11 kg

Heaters are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals and other electronic devices. Previously, light bulbs were used for these purposes - but it is clear that this method does not meet the modern stringent requirements for electrical appliances and electronics. Currently, almost all manufacturers are switching to PTC heaters, which provide not only heating, but also guarantee safety and long service life.

All heaters are equipped with electronic protection against surface overheating, which provides an additional guarantee of safe operation.

Given the high demands on home heaters, Plastim has paid maximum attention to the selection of component suppliers. For example, the supplier of PTC heating elements is the same as Schneider Electric.

You will agree that this approach to supplier selection favorably distinguishes high-quality Plastim heaters from cheap Chinese analogues.

To automatically maintain the temperature with this heater, you will need either a simple bimetallic thermostat or a more complex temperature controller. Both devices can be purchased on our website.
