ONKA 1.5mm2 spring connector for DIN rail, terminal clamp 2-wire, gray, 1020002
- Regular price
- €0,64 €0,51 excl. VAT
- Regular price
-
- Sale price
- €0,64 €0,51 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

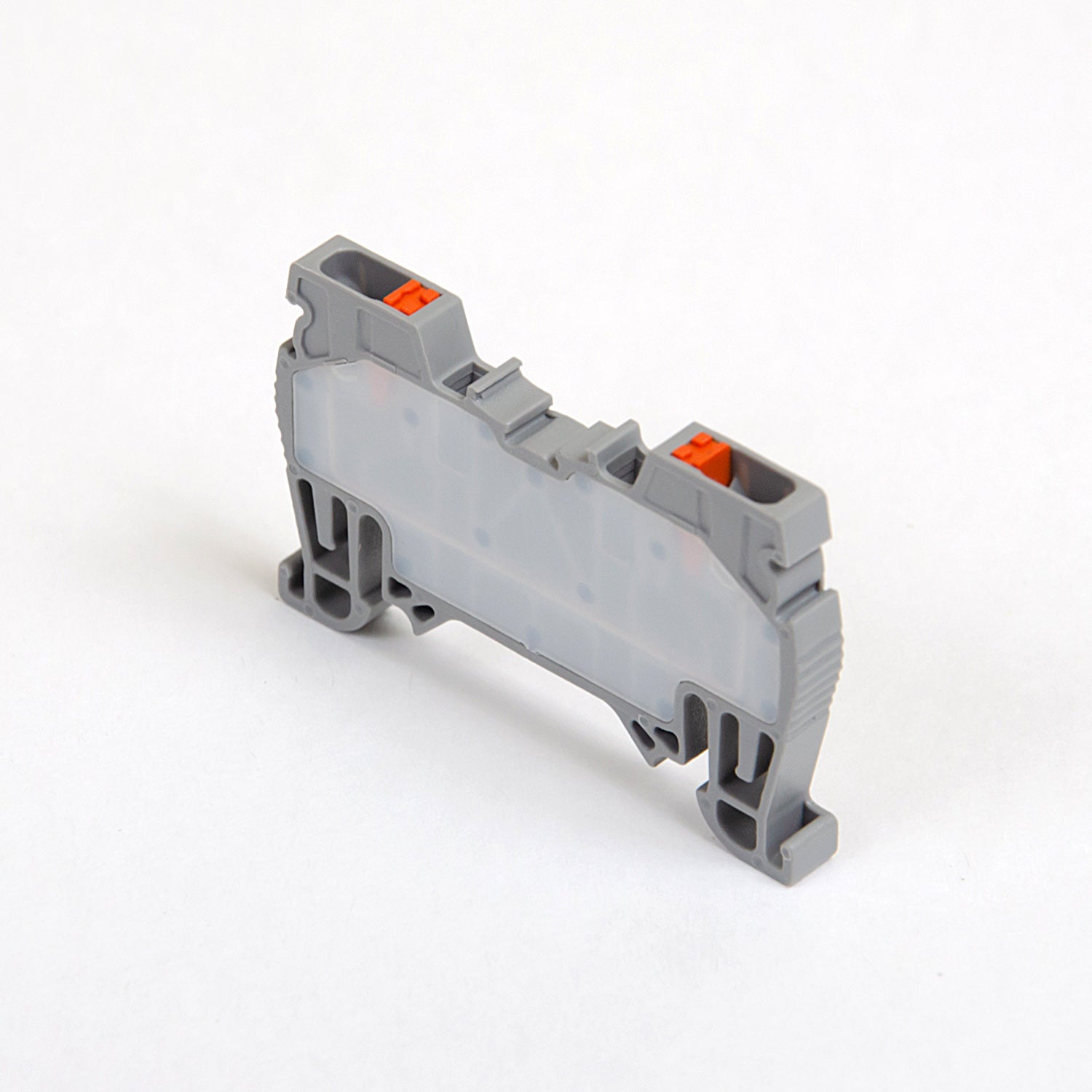

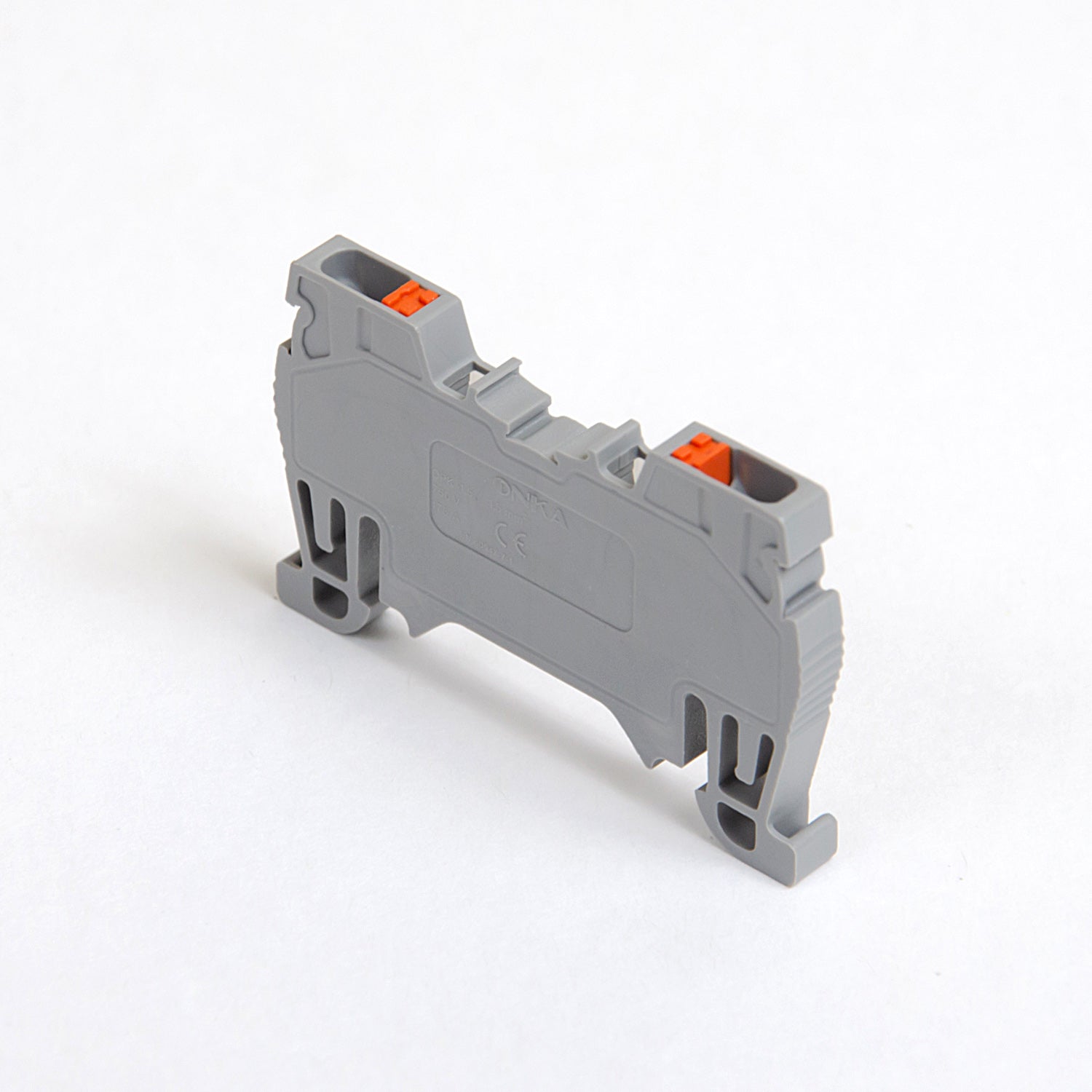

Spring terminal connector for rail / terminal for DIN rail 2-wire, plug contact, gray, ONKA, made in Turkey
Compact installation connectors for rail from ONKA provide great connection possibilities for any conductors of different cross-sections. The transparent housing allows for easy verification of the correct arrangement of conductors. Original ONKA quick connectors facilitate installation and provide 100% reliability of the connection.
Technical parameters
Cross-section of connected single-core conductor up to: 1.5mm2
Color: gray
Insulating material of the main housing: polyamide (PA6.6)
Contact / bridge material: Stainless steel / copper
Connection position: from above / top
Length of the insulated part of the cable: 9mm
Type of electrical connection: Spring fork / Plug contact
Rated voltage: 750V
Rated current: 17.5A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: Mounting on DIN rail 35 mm
Standard: EN-60947-7-1
