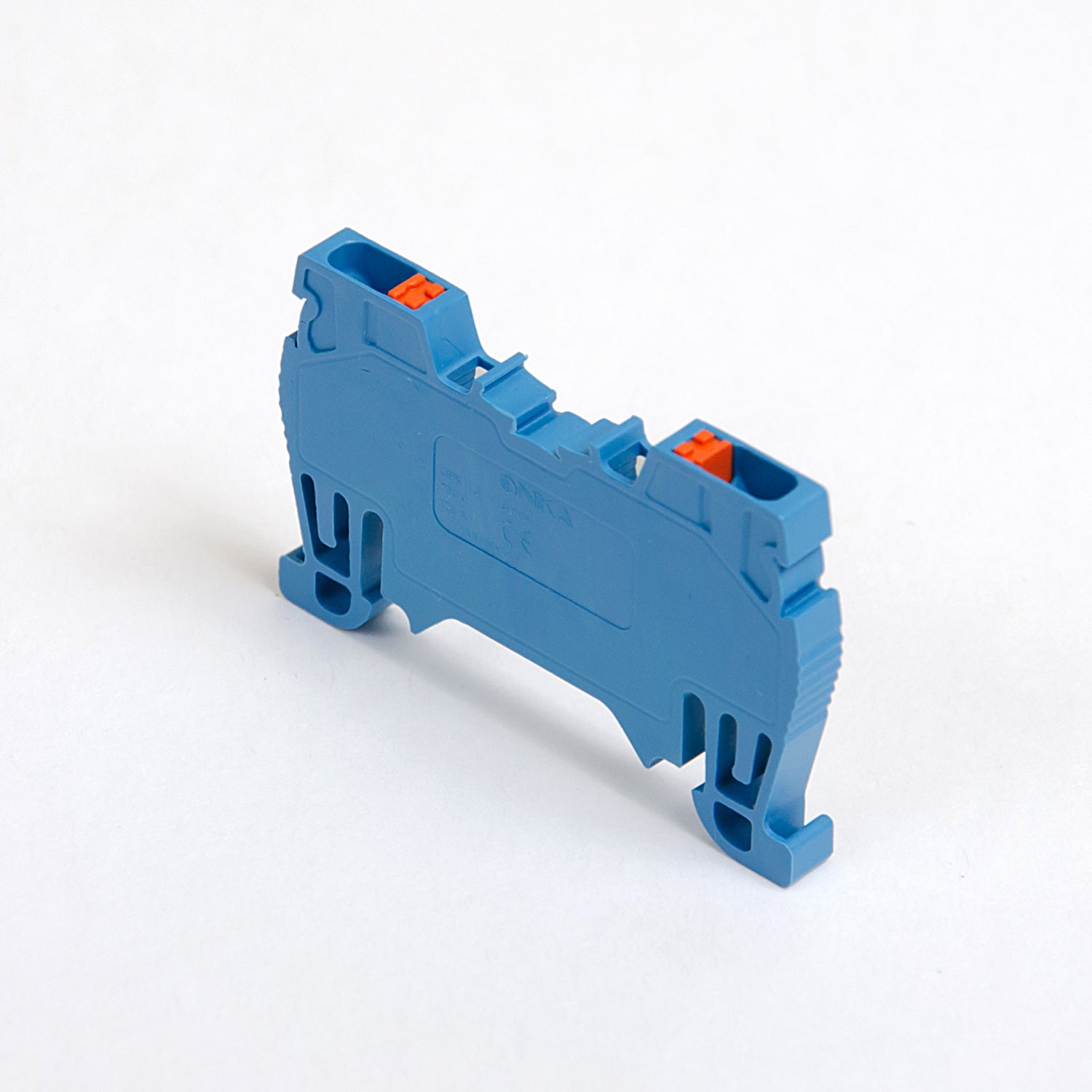

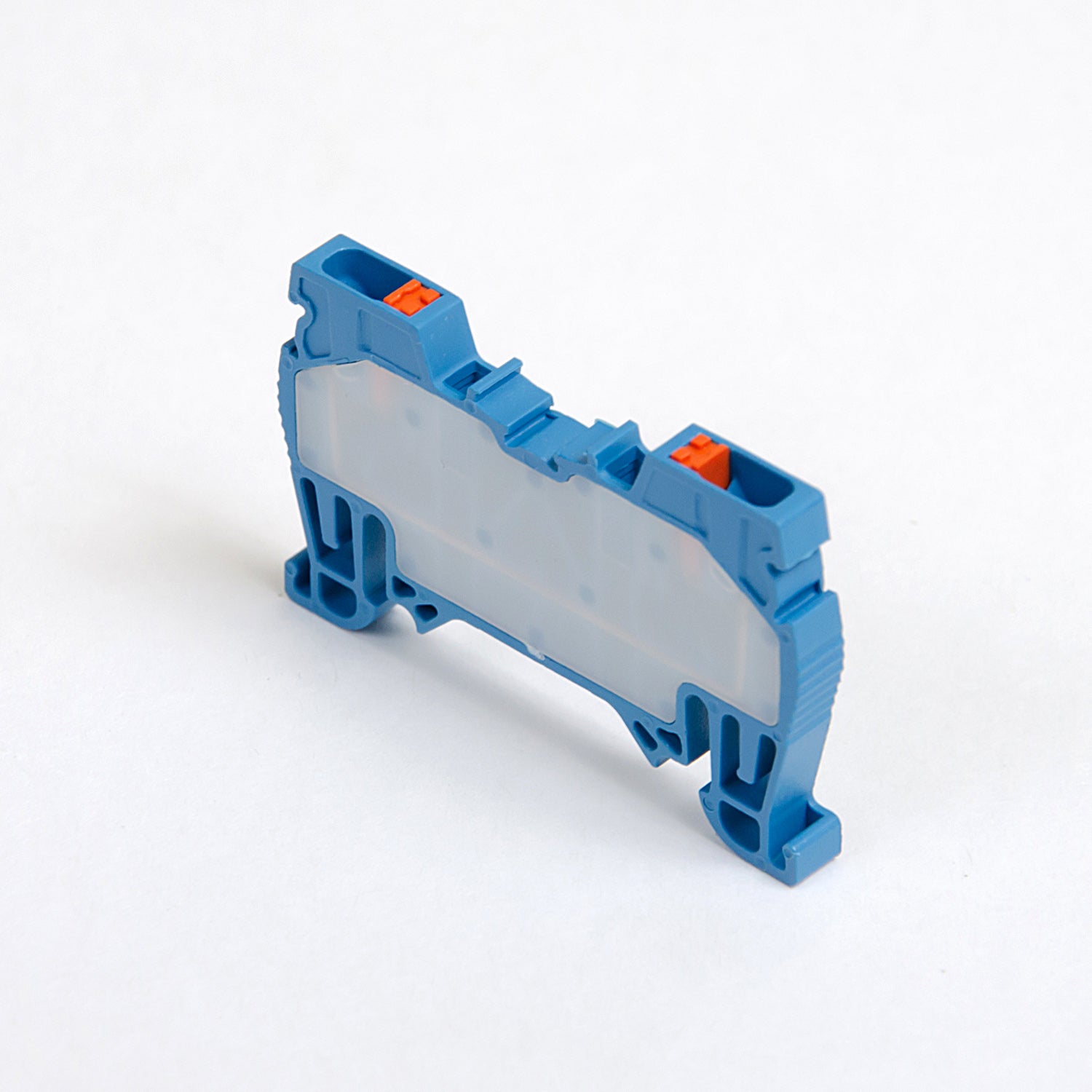

ONKA 1.5mm2 spring connector for DIN rail bolt Terminal on DIN rail 2-wire blue, 1020005
- Regular price
- €0,64 €0,51 excl. VAT
- Regular price
-
- Sale price
- €0,64 €0,51 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Spring terminal connector for rail / Terminal on DIN rail 2-wire, push-in contact, blue, ONKA, made in Turkey.
The connector / terminal ONKA is a reliable solution for anyone looking for functional and durable elements in electrical installations.
Made from high-quality materials, the connector guarantees long-lasting use and resistance to mechanical damage.
Technical Parameters
Cross-section of connected solid conductor up to: 1.5mm2
Color: blue
Insulating material of the main housing: polyamide (PA6.6)
Contact / bridge material: Stainless steel / copper
Torque: 0.4 Nm
Connection position: Top / from above
Cable entry length: 9mm
Type of electrical connection: Spring terminal / Push-in contact
Rated voltage: 750V
Rated current: 17.5A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN rail 35 mm
Standard: EN-60947-7-1
