Vendor: ONKA

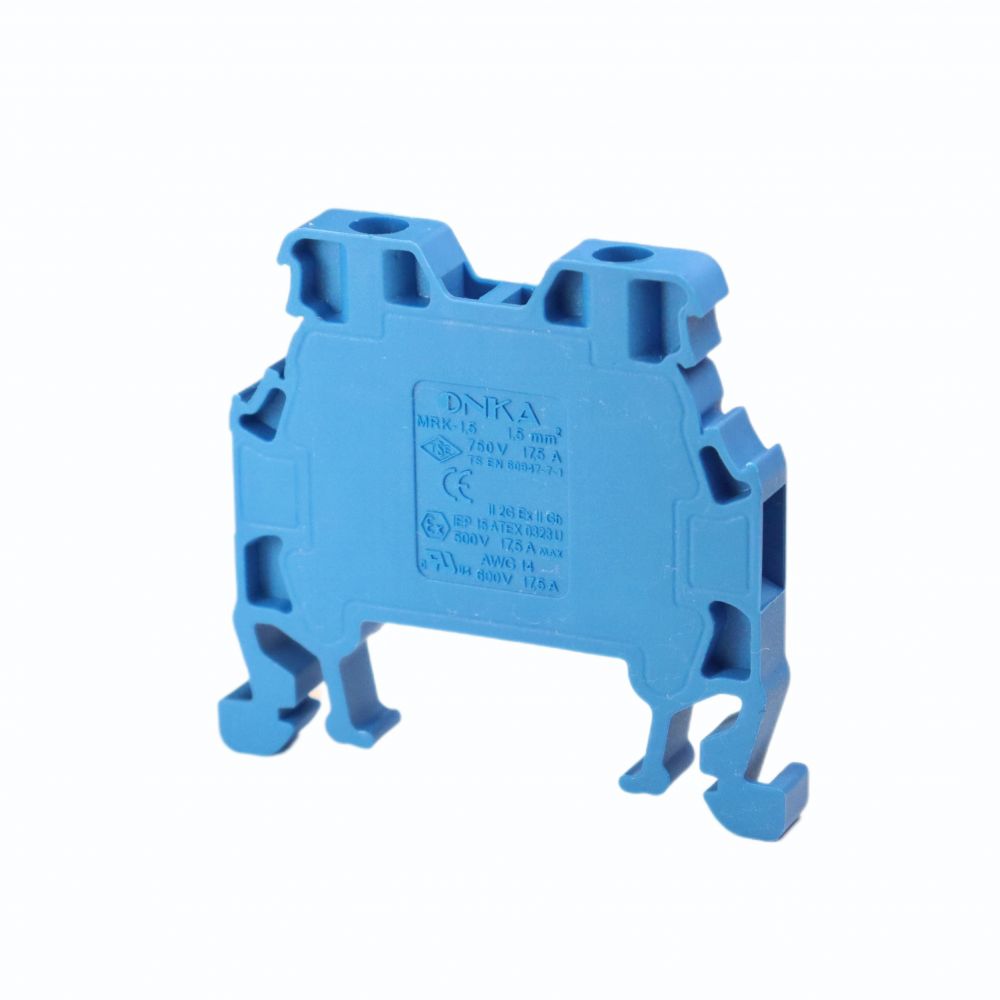

ONKA 1.5mm2 Screw Terminal Connector for DIN Rail 2-Wire Blue, 1010005

Barcode: 1010005
€0,52
€0,52
excl. VAT: €0,42
744 in stock
  • Description
  • Payment methods
  • Warranty

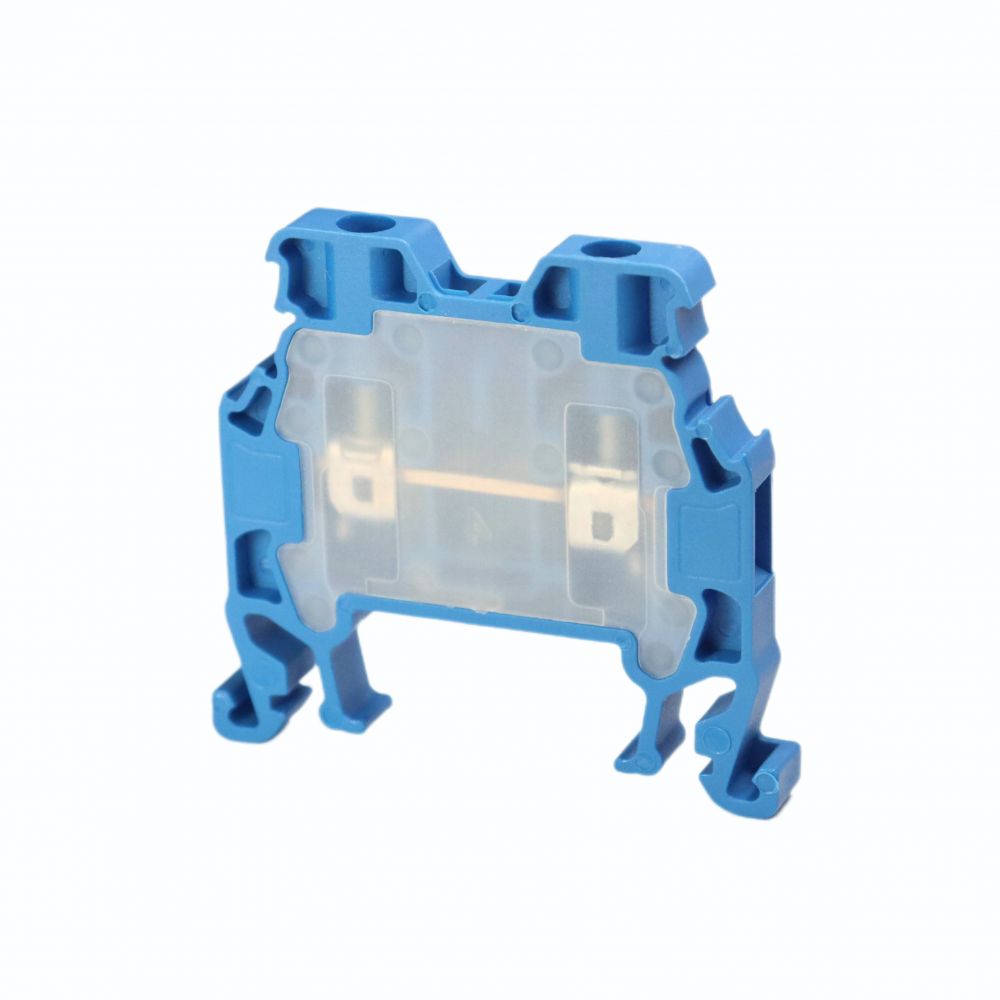

Terminal Block Rail Connector / Terminal for DIN Rail 2-Wire Blue, ONKA, Made in Turkey

The ONKA connector/block is a reliable solution for anyone looking for functional and durable elements in electrical installations.
Made from high-quality materials, the connector guarantees long-lasting use and resistance to mechanical damage.

Technical Parameters

Cross-section of connected single-core conductor up to: 1.5mm2
Color: blue
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 steel / copper
Torque: 0.4 Nm
Connection position: Side / Side
Cable strip length: 10mm
Type of electrical connection: Screw terminal
Rated voltage: 750V
Rated current: 17.5A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: 35 mm DIN rail mounting
Standard: EN-60947-7-1

Online card payment - after completing your order you will be redirected to the payment gateway, a payment confirmation will be sent to your email

COD - you pay according to the payment order to the carrier's driver

By bank transfer - no later than the next working day, you will receive a pro forma invoice to your email containing the account number that you will enter when making the payment.

On invoice - this payment option is available to partners who have a signed framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty and meets all EU requirements.

We also have free shipping (for orders over 100 EUR), a flexible system of discounts and promotions. The technical knowledge and experience of our employees allows us to provide quality advice and, if necessary, offer alternatives to electrical products.

The electrical equipment we supply meets high quality standards, is covered by a 24-month warranty, and meets all EU requirements.

In the event of a complaint, the return of goods is not charged.
