Vendor: ONKA

ONKA 10–16 mm² / 3-rail steatite / ceramic / porcelain terminal blocks – PORCELAIN TERMINAL BLOCK, 1070012

Barcode: 1070012
€4,36 €3,49 excl. VAT
€4,36 €3,49 excl. VAT
11 in stock
All items are in stock and shipped from the Czech Republic. Delivery takes 3–8 days.
  • Description
  • Payment methods
  • Warranty

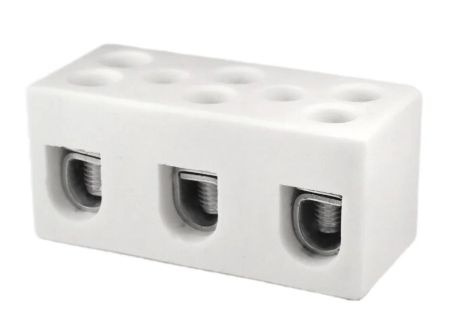

Steatite ceramic terminal block, ONKA

ONKA ceramic terminal blocks for high temperatures are designed for reliable electrical connections in extreme temperature conditions. The terminal block housing is made of steatite, providing excellent insulation properties and resistance to temperatures up to 1100 °C. Contacts made of high-quality CK45 steel ensure a secure and stable screw connection of the conductor. The product is ideal for use in heating systems, furnaces, and industrial equipment exposed to high thermal loads.

Technical specifications

  • Number of poles:3

  • Insulation material: Steatite (ceramic)

  • Contact material: CK45 steel

  • Connection type: Screw

  • Maximum operating temperature: 1100 °C

  • Standard: EN-60998-2-1

Dimensions

  • Length (A): 65.6 mm

  • Width (B): 30.0 mm

  • Height (C): 30.0 mm

  • Wire hole diameter (DØ): 6.7 mm

  • Mounting hole diameter (MØ): 5.2 mm
