ONKA 10mm2 spring connector for rail terminal block Terminal for DIN rail 2-wire gray, 1020044
- Regular price
- €1,48
- Regular price
-
- Sale price
- €1,48
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

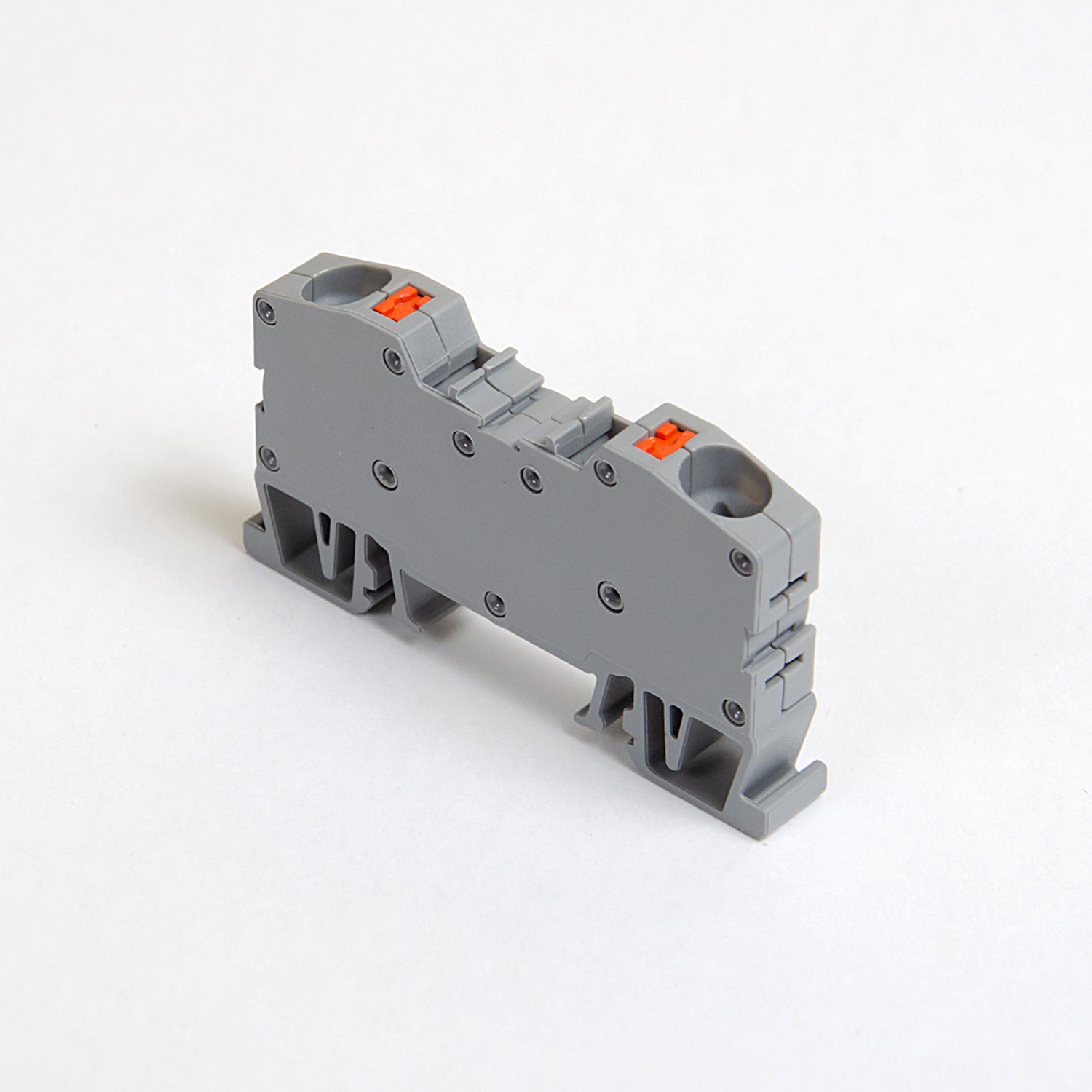

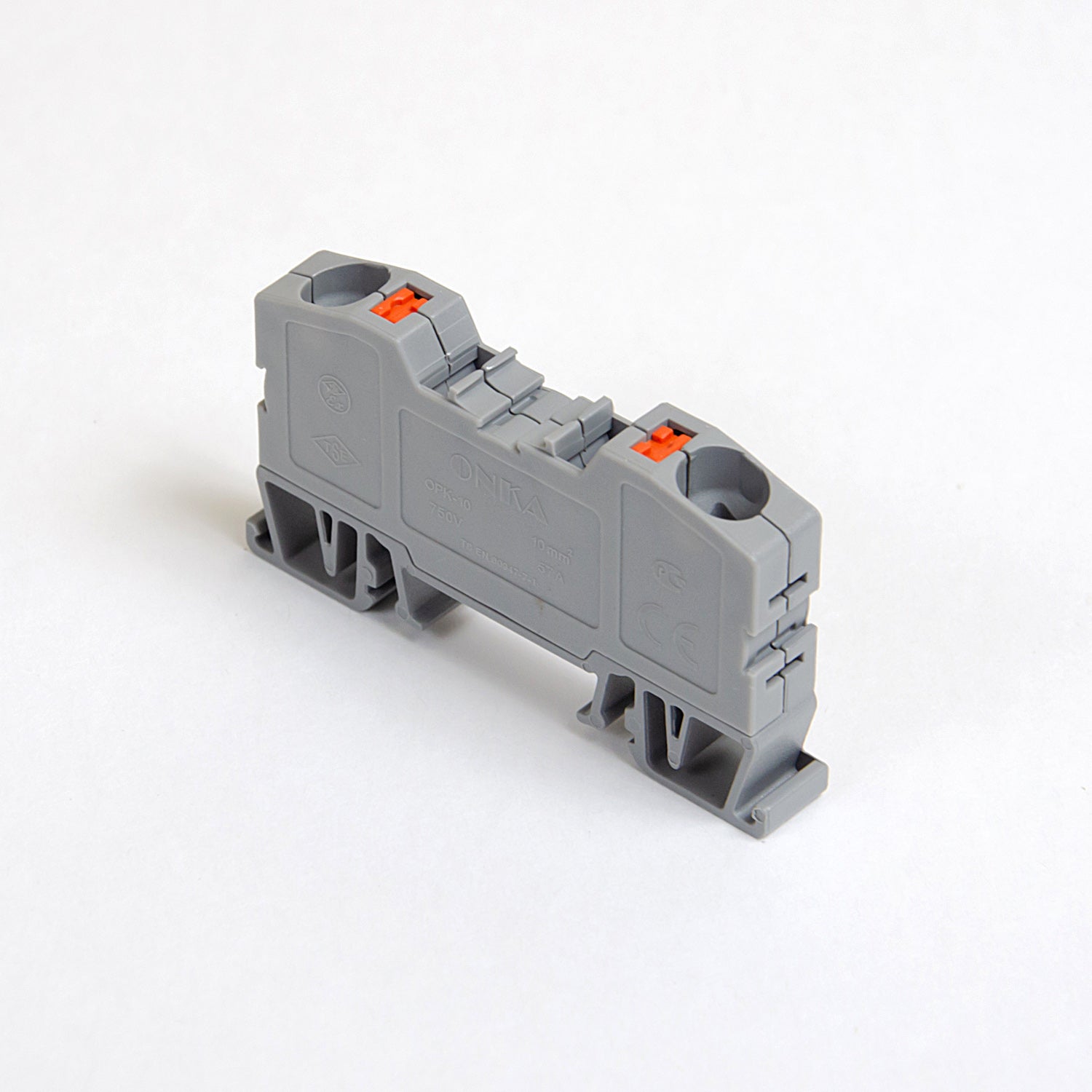

Spring bus connector / Terminal on DIN rail 2-wire, plug-in contact, gray, ONKA, made in Turkey
Compact installation connectors for the bus from ONKA provide great possibilities for connecting any conductors of different cross-sections. The transparent housing allows for easy control of the correct placement of the conductors. Original ONKA quick connectors facilitate installation and guarantee 100% reliability of the connection.
Technical parameters
Cross-section of connected single-core conductor up to: 10mm2
Color: gray
Insulating material of the main housing: polyamide (PA6.6)
Contact / bridge material: stainless steel / copper
Connection position: from above / up
Cable slot length: 12mm
Type of electrical connection: spring clamp / plug-in contact
Rated voltage: 750V
Rated current: 57A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: mounting DIN rail 35 mm
Standard: EN-60947-7-1
