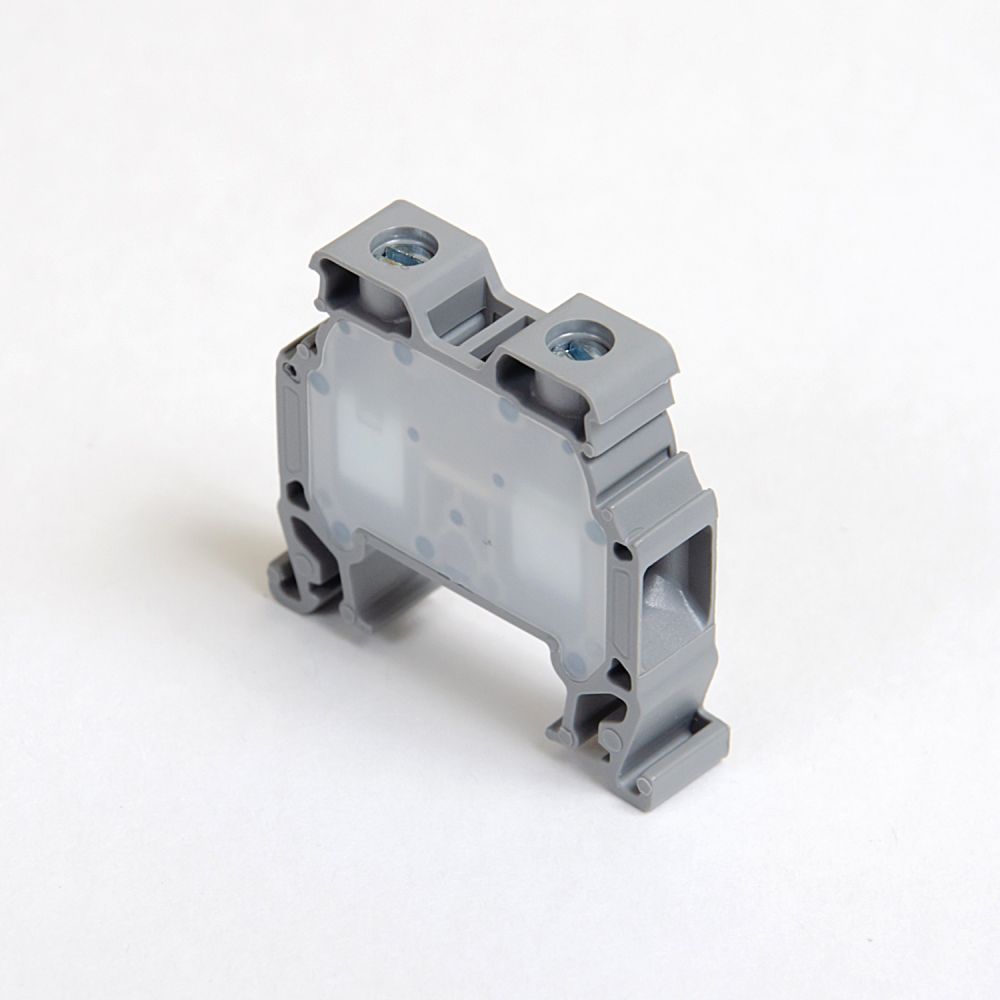

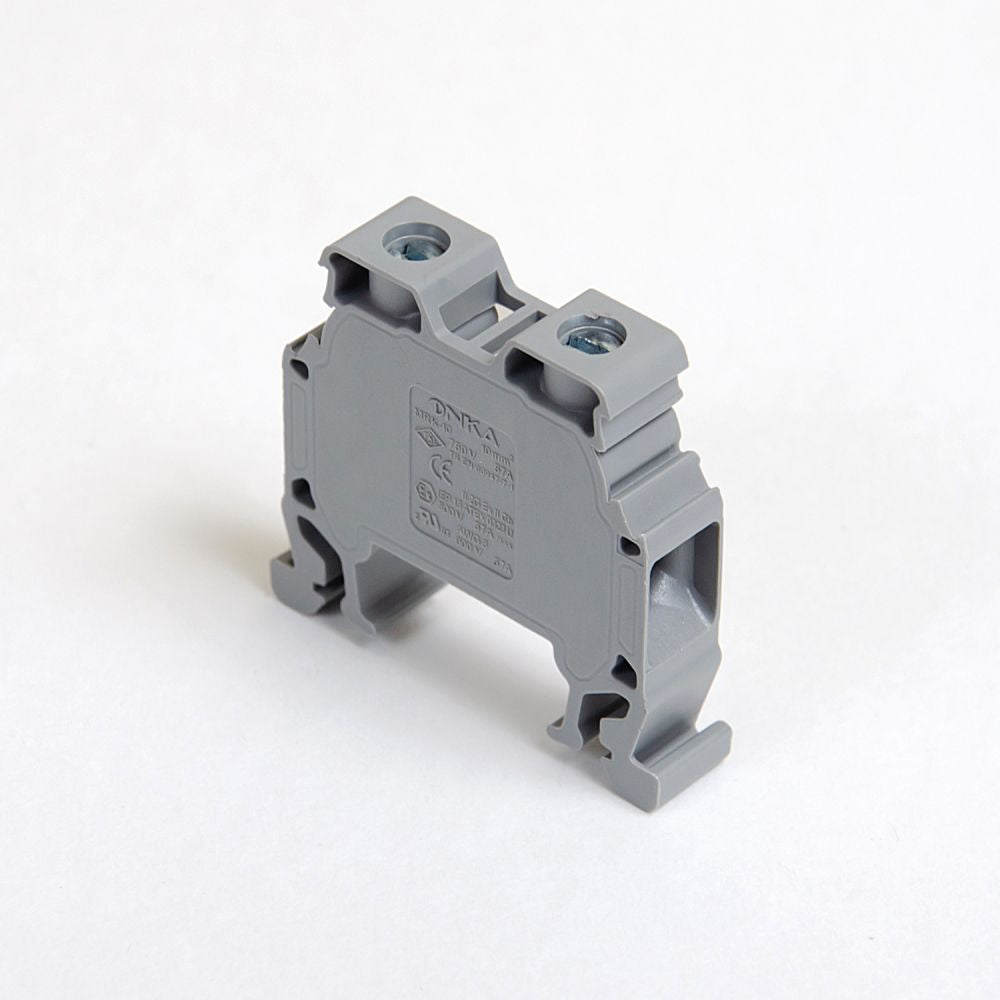

ONKA 10mm2 Screw connector for rail terminal for DIN rail 2-wire gray, 1010042
- Regular price
- €1,12
- Regular price
-
- Sale price
- €1,12
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Threaded connector / joint for rail / terminal for DIN rail 2-wire gray, ONKA, made in Turkey
Compact installation connectors for rail from ONKA provide great possibilities for connecting any conductors of different cross-sections. The transparent housing allows for easy verification of the correct arrangement of conductors. Original quick connectors from ONKA provide comfort during installation and 100% reliability of the connection.
Technical Parameters
Cross-section of connected single-core conductor up to: 12mm2
Color: gray
Insulating material of the main housing: polyamide (PA6.6)
Contact / bridge material: Steel CK45 / copper
Torque: 0.8 Nm
Connection position: Side / Side
Cable length: 10mm
Type of electrical connection: Threaded terminal
Rated voltage: 750V
Rated current: 57A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: Mounting DIN rail 35 mm
Standard: EN-60947-7-1
Online card payment - after completing your order you will be redirected to the payment gateway, a payment confirmation will be sent to your email
COD - you pay according to the payment order to the carrier's driver
By bank transfer - no later than the next working day, you will receive a pro forma invoice to your email containing the account number that you will enter when making the payment.
On invoice - this payment option is available to partners who have a signed framework agreement with our company.
If you want to use the last 2 methods, call our manager and he will give you instructions on how to receive an invoice with or without VAT.
The electrical equipment we supply meets high quality standards, has a 24-month warranty and meets all EU requirements.
We also have free shipping (for orders over 100 EUR), a flexible system of discounts and promotions. The technical knowledge and experience of our employees allows us to provide quality advice and, if necessary, offer alternatives to electrical products.
The electrical equipment we supply meets high quality standards, is covered by a 24-month warranty, and meets all EU requirements.
In the event of a complaint, the return of goods is not charged.
