ONKA 16mm2 PE Screw terminal bus connector on DIN rail 2-wire gray, 1010223
- Regular price
- €7,92
- Regular price
-
- Sale price
- €7,92
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

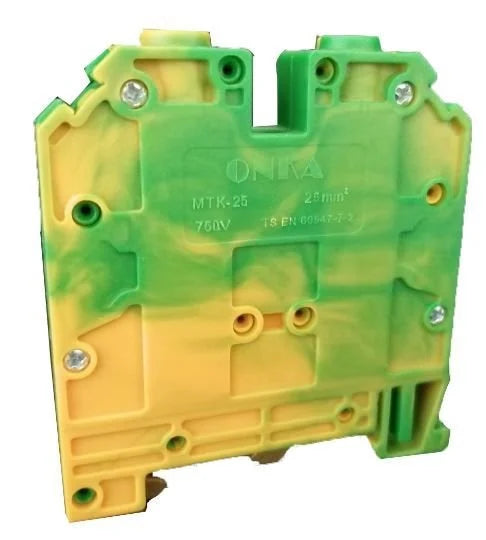

PE screw terminal / terminal on DIN rail 2-wire green-yellow, ONKA, made in Turkey
Compact installation terminals from ONKA provide great possibilities for connecting different conductors of various cross-sections. The transparent housing allows for easy verification of the correct arrangement of conductors. Original quick connectors from ONKA provide convenience during installation and 100% reliability of the connection.
Technical Parameters
Cross-section of connected single-core conductor up to: 25mm2
Color: Green-yellow (camouflage)
Insulating material of the main housing: polyamide (PA6.6)
Contact / bridge material: Steel CK45 / copper
Tightening torque: 1.2 Nm
Connection position: Side / Side
Cable strip length: 16mm
Type of electrical connection: Screw terminal
Rated voltage: 750V
Operating temperature range: -40°C... 140°C
Mounting method: DIN rail 35 mm
Standard: EN-60947-7-1
