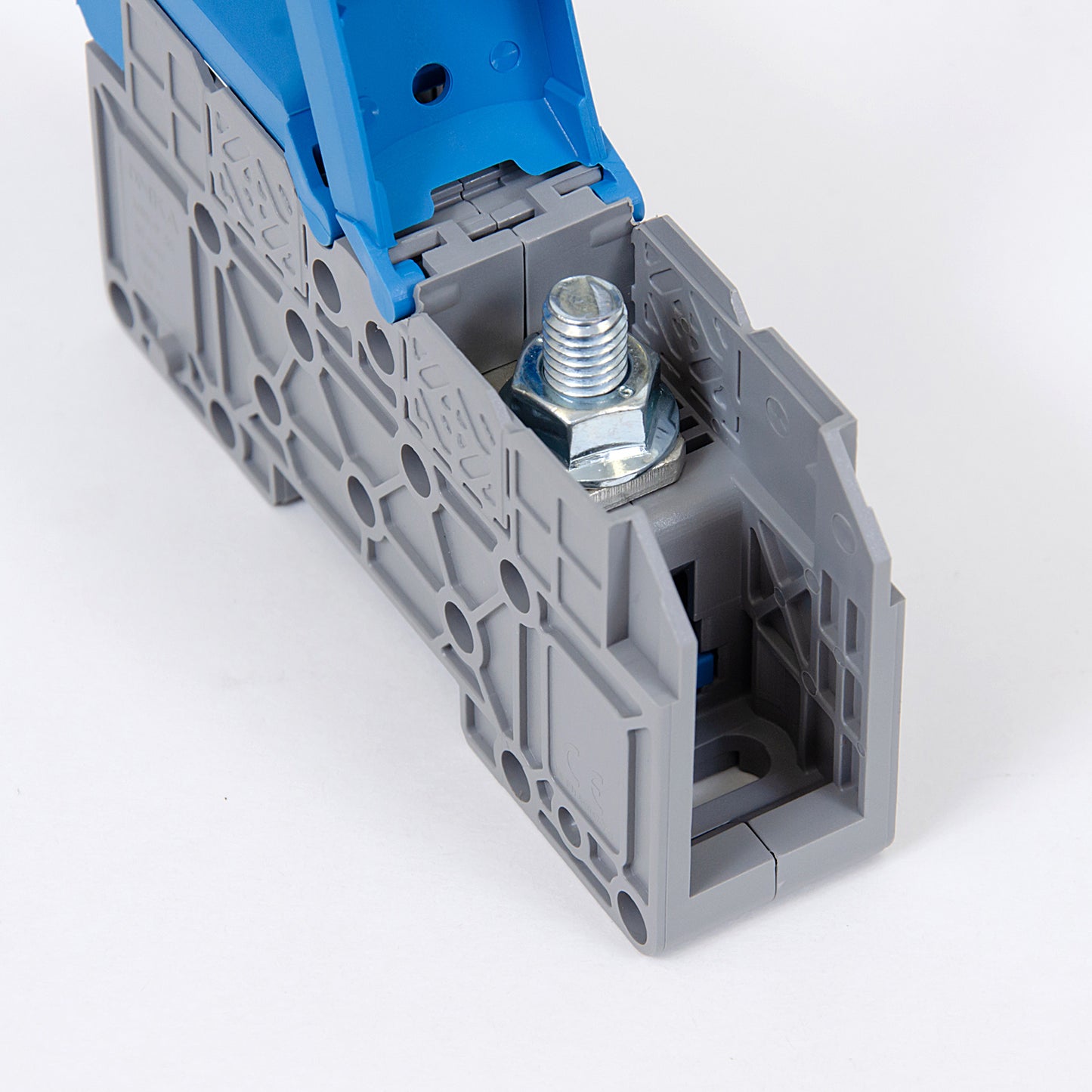

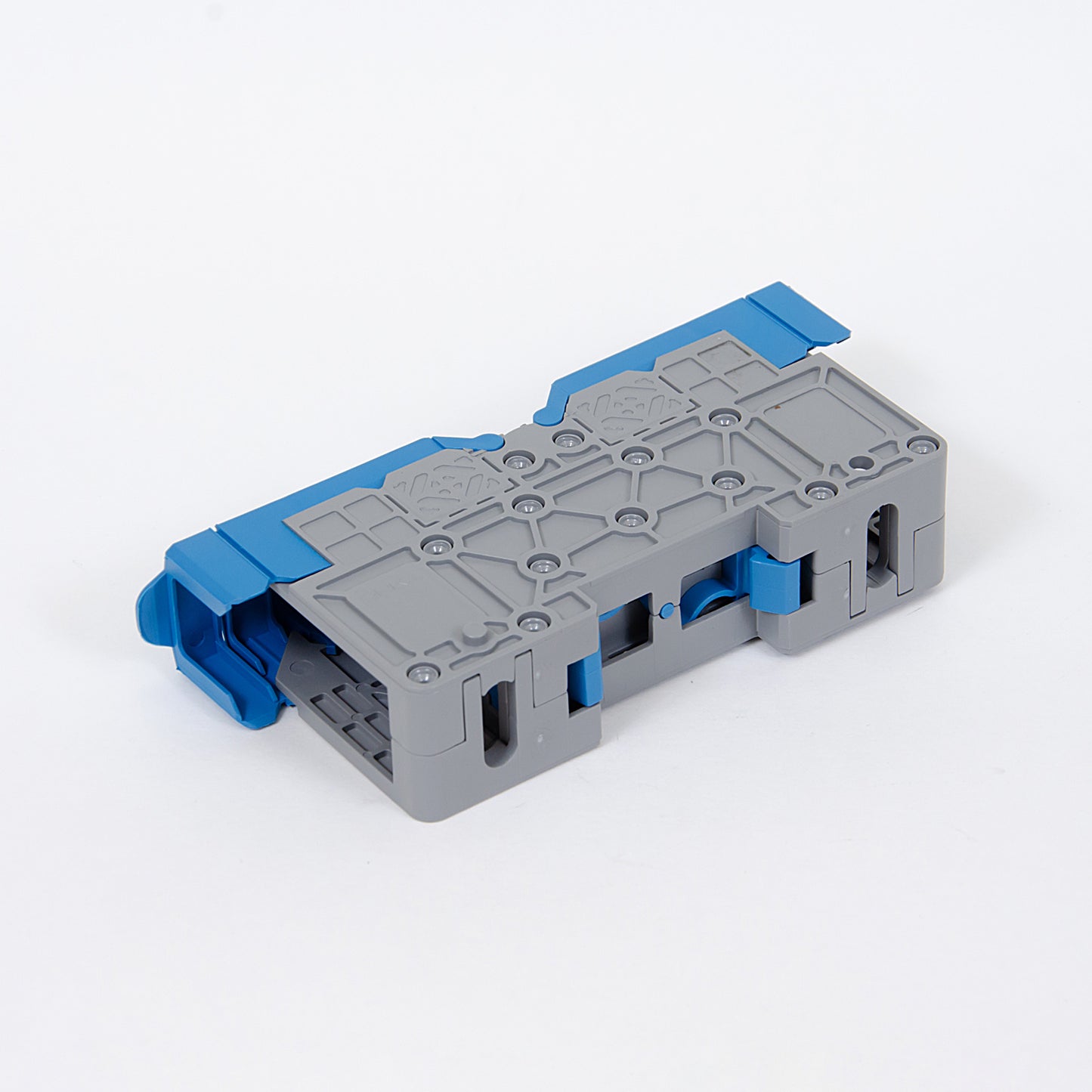

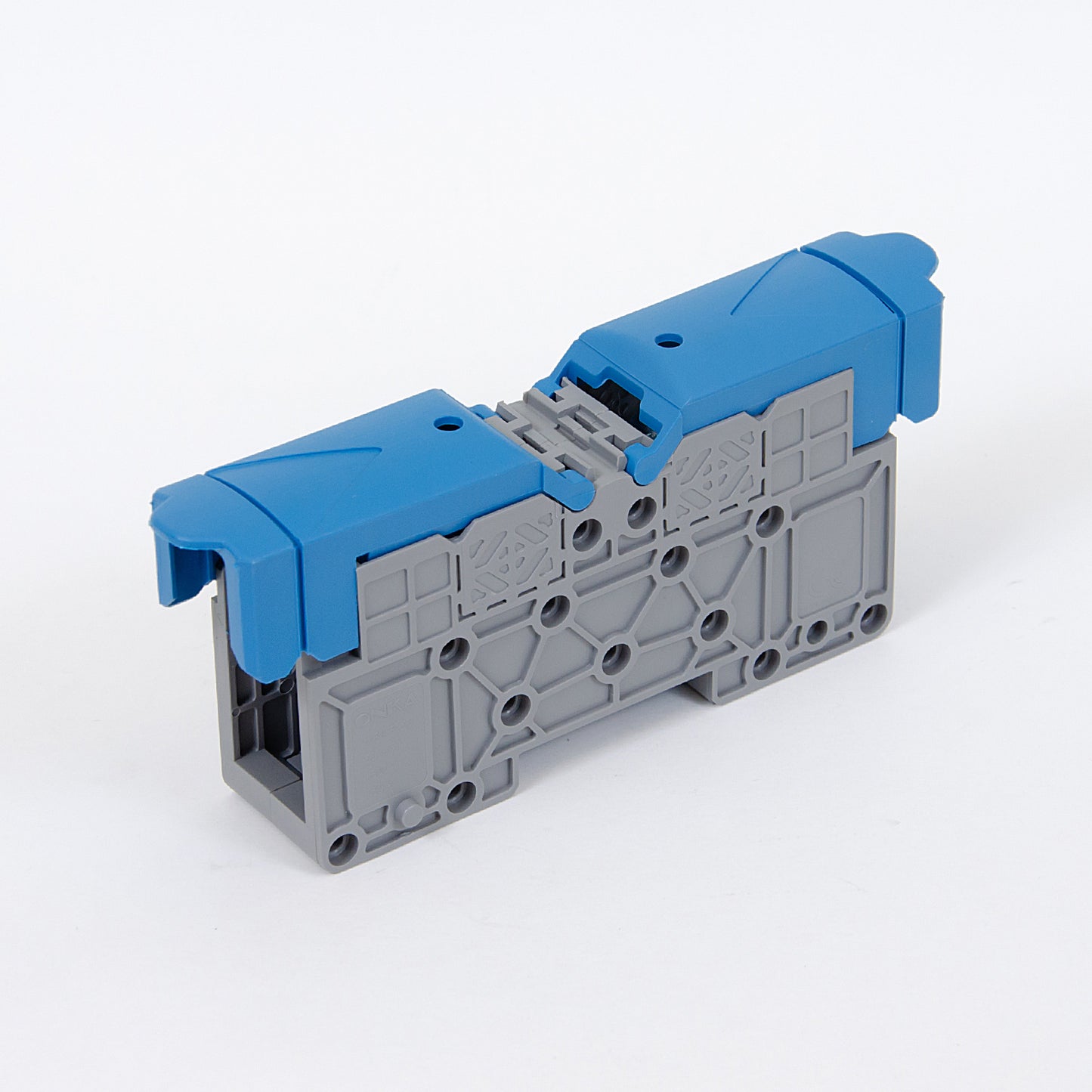

ONKA 50mm2 M8 Screw Rail Connector Terminal for DIN Rail with Protective Cover, Blue, 1030034
Failed to load pickup availability
Compact installation rail connectors from ONKA provide great possibilities for connecting any conductors of different cross-sections. The transparent housing allows for easy verification of the correct arrangement of conductors. Original ONKA quick connectors facilitate installation and provide 100% reliability of the connection. Technical specifications Cross-section of connected single-core conductor up to: 50mm2
Color: blue
Insulating material of the main housing: polyamide (PA6.6)
Contact / bridge material: CK45 steel / copper
Connection position: Side / Side
Rated voltage: 1000V
Rated current: 150A
Operating temperature from: -40°C
Operating temperature to: 140°C
Mounting method: Mounting on DIN rail 35 mm
