Vendor: ONKA

OPK 3 three-part terminal block, 2.5 mm²

Barcode: 1020155
€2,76 €2,21 excl. VAT
€2,76 €2,21 excl. VAT
100 in stock
All items are in stock and shipped from the Czech Republic. Delivery takes 3–8 days.
  • Description
  • Payment methods
  • Warranty

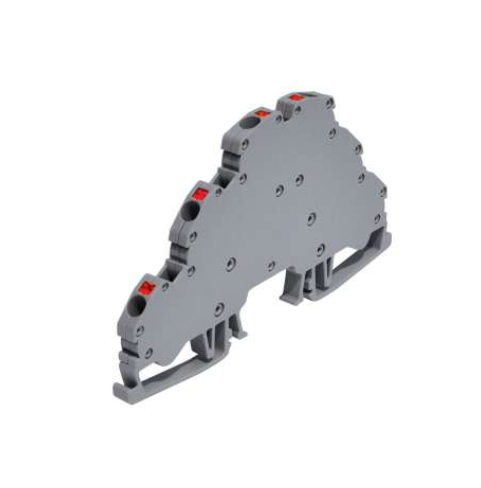

Three-part screwless terminal block for DIN rail, gray, ONKA

ONKA multi-level terminal blocks provide a space-saving solution for reliable electrical and mechanical connections in confined distribution panel spaces. The three-level design allows connection of multiple independent circuits stacked vertically, while maintaining a minimum width of 35 mm on the DIN rail. Original ONKA terminals offer easy installation, secure wire fastening, and long-term connection stability, even in demanding industrial environments.

Technical parameters

  • Design: Three-level (3-tier)

  • Color: gray

  • Rated cross-section (IEC): 2.5 mm²

  • Rated current (IEC): 24 A

  • Rated voltage (IEC): 750 V

  • Body insulation material: Polyamide (PA 6.6)

  • Bridge material: Copper

  • Spring material: Stainless steel

  • Control button material: Polyamide (PA 6.6), orange

  • Operating temperature range: -40 °C to +140 °C

  • Wire stripping length: 9 mm

  • Mounting method: 35 mm DIN rail

  • Standard: EN-60947-7-1

  • Certificate: TSE, CE

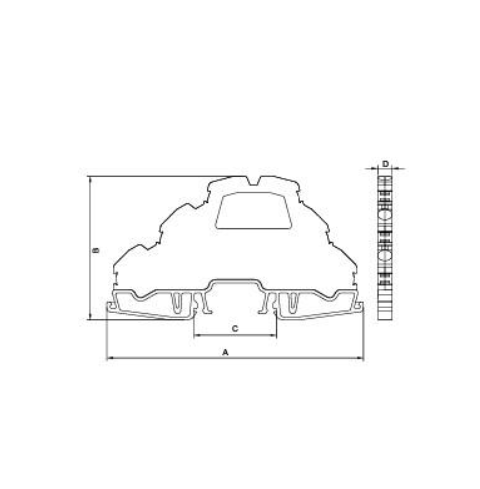

Dimensions

  • Dimension A: 106.0 mm

  • Dimension B: 60.0 mm

  • Dimension C: 34.5 mm

  • Dimension D (clamp width): 5.9 mm
