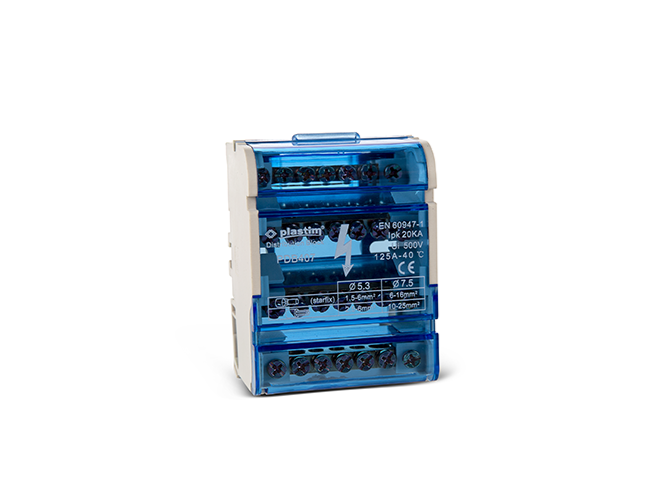

PDB407 phase distribution terminal plate
- Regular price
- €13,16 €10,53 excl. VAT
- Regular price
-
- Sale price
- €13,16 €10,53 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Phase distribution terminal block for DIN rail, Plastim, made in Turkey.
The Plastim four-pole distribution block is used for safe, structured, and space-saving distribution of three phases and a neutral conductor (3P+N) in high-voltage distribution boards. The assembly consists of four separate, galvanically isolated brass busbars (4 poles), each with 7 connection points of various diameters for secure fastening of main supply and output circuits. The transparent hinged protective cover allows instant visual inspection of connection status while providing reliable protection against accidental contact. The block is designed for quick mounting on a standard 35 mm DIN rail using a clip or for screw mounting on a mounting plate.
Technical specifications
Product type: four-pole distribution block / terminal block
Number of poles: 4 (ideal for three-phase systems with neutral conductor)
Rated current: 125 A
Number of terminals per pole: 7
Total number of terminals: 28 (4× 7)
Pole connection configuration: 5× ø 5.3 mm + 2× ø 7.5 mm
Connection type: Screw
Mounting method: 35 mm DIN rail / mounting plate
Dimensions
Length: 65.0 mm
Width: 89.5 mm
Height: 50.0 mm
