Vendor: ONKA

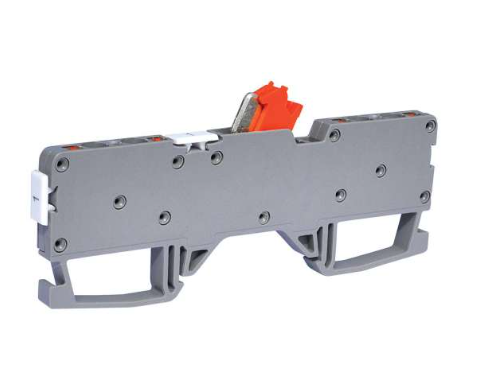

OPK series – spring-loaded test clamps

Barcode: 1020265
€2,36 €1,89 excl. VAT
€2,36 €1,89 excl. VAT
100 in stock
All items are in stock and shipped from the Czech Republic. Delivery takes 3–8 days.
  • Description
  • Payment methods
  • Warranty

Screwless terminal block for DIN rail, gray, ONKA

ONKA compact terminal blocks provide reliable electrical and mechanical connections in distribution panels. They are designed for mounting on a standard 35 mm DIN rail. Original ONKA terminal blocks offer easy installation, secure wire fastening, and long-term connection stability, even in demanding industrial environments.

Technical specifications

  • Color: gray

  • Rated cross-section: 2.5 mm²

  • Rated current: 24 A

  • Rated voltage: 750 V

  • Body insulation material: Polyamide (PA 6.6)

  • Bridge material: Copper

  • Spring material: Stainless steel

  • Control button material: Polyamide (PA 6.6), orange

  • Operating temperature range: -40 °C to +140 °C

  • Wire stripping length: 9 mm

  • Mounting method: 35 mm DIN rail

  • Standard: EN-60947-7-1

  • Certificate: TSE, CE

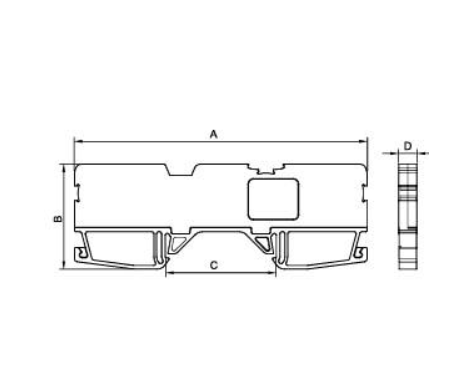

Dimensions

  • Width (A): 91.8 mm

  • Height (B): 33.0 mm

  • Height (C): 34.5 mm

  • Thickness (D): 5.9 mm
