OPK-C 4 mm² two-pole terminal block

Barcode: 1020495
€1,96 €1,57 excl. VAT
€1,96 €1,57 excl. VAT
100 in stock
All items are in stock and shipped from the Czech Republic. Delivery takes 3–8 days.
  • Description
  • Payment methods
  • Warranty

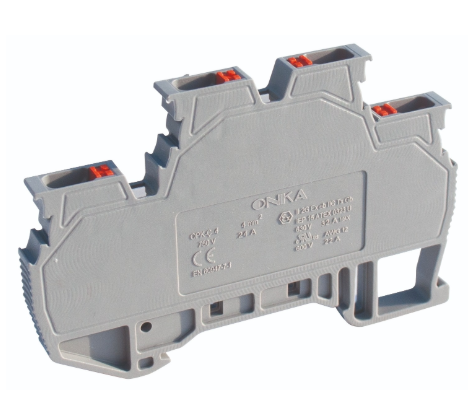

Screwless terminal block for DIN rail, gray, ONKA

ONKA's compact terminal blocks provide reliable electrical and mechanical connections in distribution panels. They are designed for mounting on a standard 35 mm DIN rail. Original ONKA terminal blocks offer easy installation, secure wire fastening, and long-term connection stability, even in demanding industrial environments.

Technical specifications

  • Color: gray

  • Rated cross-section (IEC): 4 mm²

  • Rated cross-section (UL): 12 AWG

  • Rated current (IEC): 24 A

  • Rated current (UL): 22 A

  • Rated voltage (IEC): 750 V

  • Rated voltage (UL): 300 V

  • Body insulation material: Polyamide (PA 6.6)

  • Bridge material: Copper

  • Spring material: Stainless steel

  • Control button material: Polyamide (PA 6.6), orange

  • Operating temperature range: -40 °C to +140 °C

  • Wire stripping length: 9 mm

  • Mounting method: 35 mm DIN rail

  • Standards: EN-60947-7-1, UL1059

  • Certificates: TSE, CE, UL

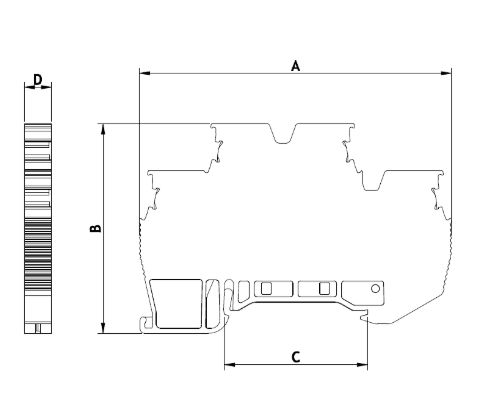

Dimensions

  • Dimension A: 75.15 mm

  • Dimension B: 50.5 mm

  • Dimension C: 34.5 mm

  • Dimension D (terminal width): 6.6 mm
