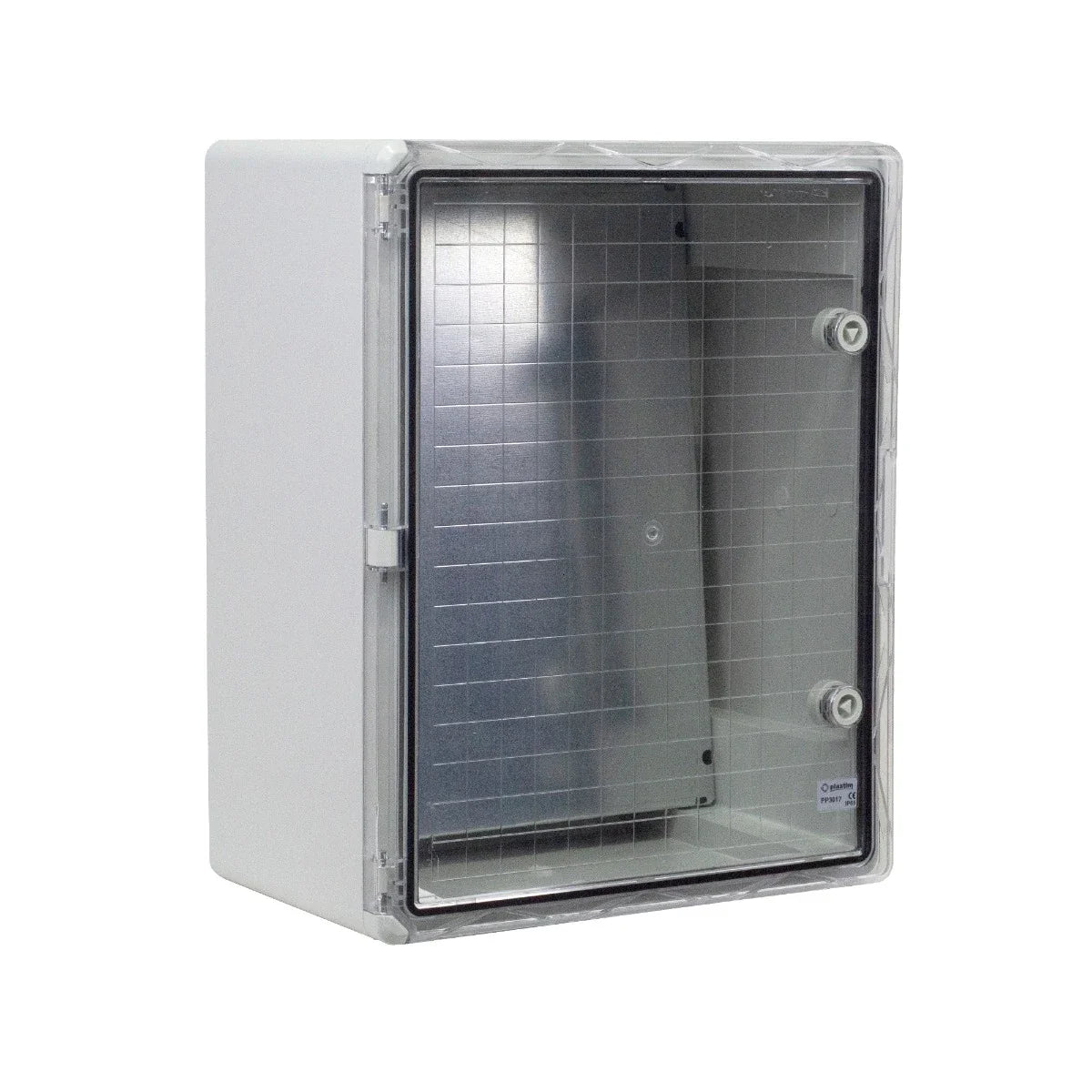

Junction box plastic transparent door 400x500x240mm IP65 PP3017

Plastic junction box, transparent door, seam 400x500x240mm, IP65, PP3017 Plastim

New plastic waterproof boxes produced by the Turkish company Plastim open a new chapter in the application of plastic protective housings for automation and electrical distribution tasks.

• Reinforced bushings with metal wedge

• New housing design with corner reinforcements and increased thickness of the door and the entire product.

• Extended temperature range in which the housing retains all its improved properties -35/+60C

• Fully corrosion-resistant lightweight solid galvanized metal mounting plate
• can be equipped with transparent doors and DIN rails; reinforced metal dowel sleeves;

MAIN TECHNICAL CHARACTERISTICS

• Mounting plate: made of 1 mm thick galvanized steel
• Material: Material: HB ABS halogen-free + polycarbonate (door).
• Width: 400 mm
• Height: 500 mm
• Depth: 240 mm
• Color: RAL7035 light gray
• Protection: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 3.00 kg
