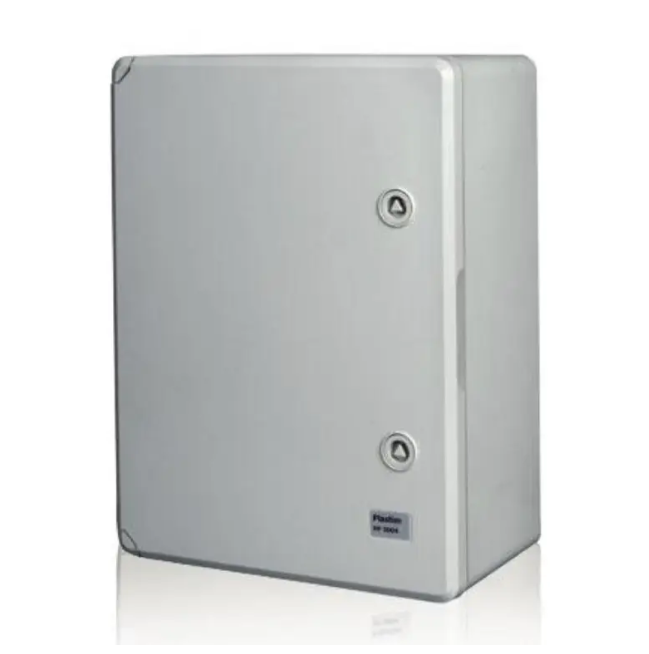

Plastic junction box with gray door 400x500x175mm IP65 PP3003 (p-box 4050-1)

Plastic junction box, gray door, dimensions 400x500x175mm, IP65, PP3003 Plastim / P-BOX 3040-1

New plastic waterproof boxes from the Turkish company Plastim open a new page in the use of plastic protective boxes for automation and electrical distribution tasks.

• Reinforced hinges with metal cap

• New housing design with corner reinforcements and increased thickness of the door and the entire product.

• Extended temperature range, in which the manifold retains all its improved properties -35/+60C

• Completely corrosion-resistant lightweight solid galvanized metal mounting plate
• can be equipped with transparent doors and DIN rails; reinforced metal hinges with stopper;

MAIN TECHNICAL CHARACTERISTICS

• Mounting plate: made of 1 mm thick galvanized steel
• Material.
• Width: 400 mm
• Height: 500 mm
• Depth: 175 mm
• Color: RAL7035 light gray
• Protection: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 4.3 kg
