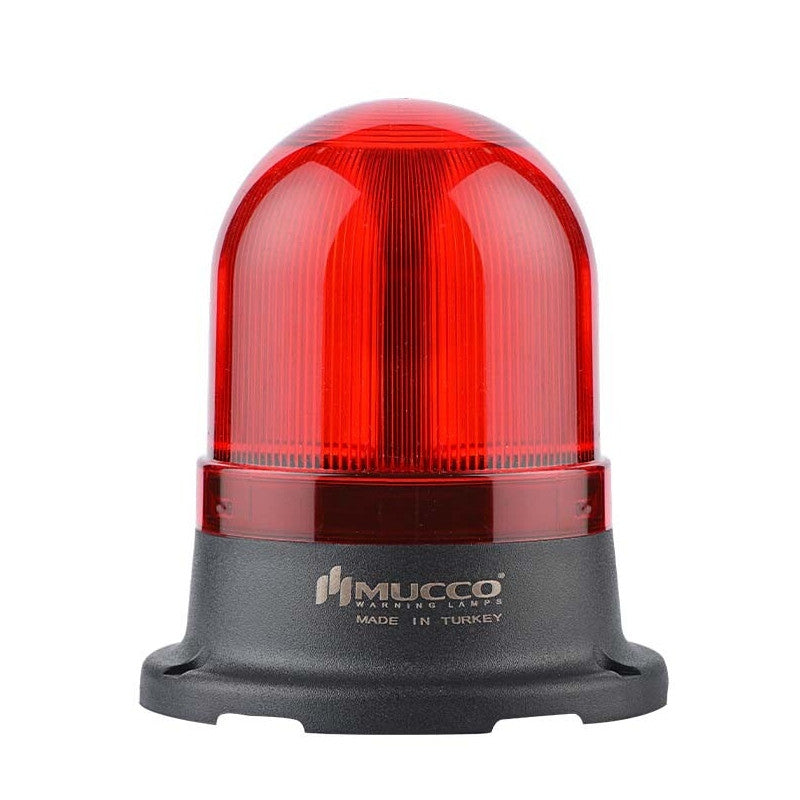

Series 70 SNT-725 signal beacon red Mucco, 85-250 V AC/DC, ø70mm, SNT-125-B

Rated voltage, starting current

85-250 V AC/DC

78 mA ±10 % 50-60 Hz

Protection rating

IP65, resistant to water, dust, heat, and UV radiation

Housing color

Red

Light source

LED POWER

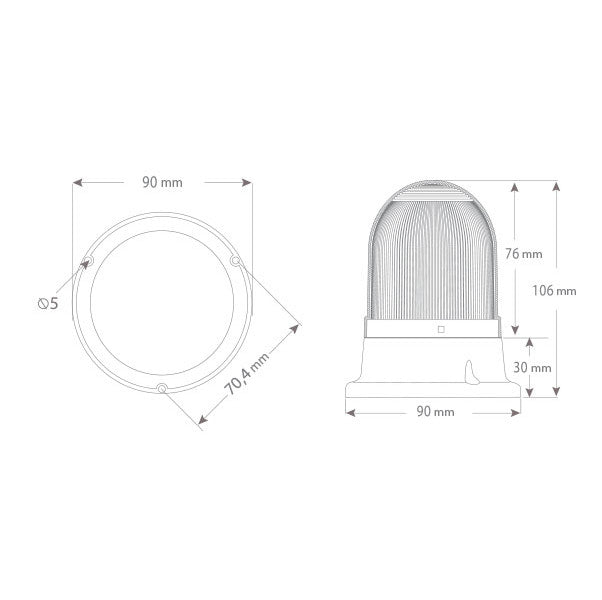

Housing diameter

ø70 mm

Sound level

188~112dB/1m - adjustable with internal potentiometer

Type of optical signal

steady light, flashing

Type of acoustic signal

1 tone (optional)

Input response

On/off: max. 10 ms

Operating temperature

-20 °C to +50 °C (-4 °F to +122 °F)

Expected lifespan

At least 50,000 hours

Material

ABS (body) + polycarbonate (housing)

Mounting method

Surface, wall-mounted

Certificates and quality evidence

ISO-9001, CE, RoSH2 and EAC
