PDB 160 phase distribution terminal block

Barcode: PDB160
€13,40 €10,72 excl. VAT
€13,40 €10,72 excl. VAT
Low stock: 10 left
All items are in stock and shipped from the Czech Republic. Delivery takes 3–8 days.
  • Description
  • Payment methods
  • Warranty

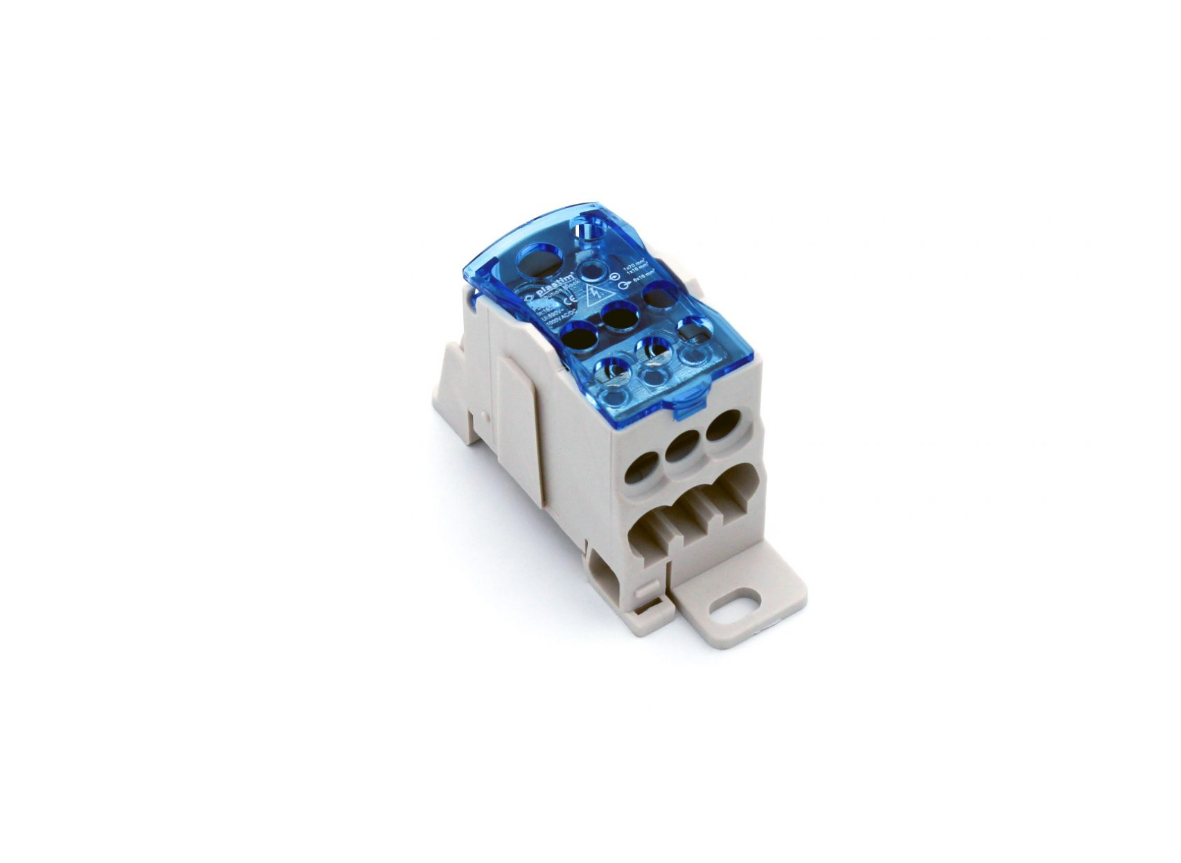

Phase distribution terminal block for DIN rail mounting, Plastim.

The compact Plastim PDB 160 distribution block is used for safe and organized distribution of phase or neutral conductors in distribution boards. It allows connection of one main supply conductor with a large cross-section and distribution to seven output circuits. The solid brass bridge ensures perfect conductivity and low contact resistance, while the plastic cover guarantees protection against accidental contact. The block is designed for quick mounting on a standard 35 mm DIN rail or for fastening to a mounting plate using screws.

Technical specifications

  • Product type: Distribution block / terminal block

  • Rated current: 160 A

  • Number of inputs: 1

  • Number of outputs: 7 (6 standard outputs + 1 jumper)

  • Input conductor cross-section: 10 – 70 mm²

  • Output conductor cross-section: 6× 2.5 – 16 mm²

  • Bridge (jumper) cross-section: 1× 6 – 16 mm²

  • Connection type: Screw

  • Mounting method: 35 mm DIN rail / mounting plate
