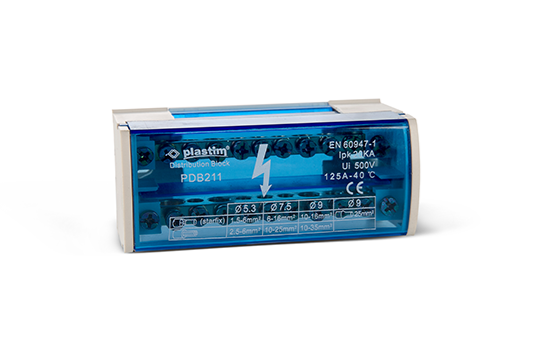

Phase distribution terminal block for DIN rail mounting, Plastim
The Plastim double-pole distribution block is used for safe, structured, and clearly arranged distribution of phase and neutral conductors in high-voltage distribution boards. The assembly consists of two separate, galvanically isolated brass conductive profiles (2 poles), each with 11 connection points of different diameters for optimal connection of the main power supply and terminal circuits. The transparent protective cover allows visual inspection of the connections while providing reliable protection against accidental contact. The block is designed for quick mounting on a standard 35 mm DIN rail using a clip or for secure fastening with screws on a mounting plate.
Technical specifications
Product type: Double-pole distribution block / terminal block
Number of poles: 2
Nominal current: 125 A
Number of terminals per pole: 11
Total number of terminals: 22 (2× 11)
Terminal configuration per pole: 9× ø 5.3 mm + 2× ø 7.5 mm
Connection type: Screw
Mounting method: 35 mm DIN rail / mounting plate
Dimensions
Length: 100.0 mm
Width: 45.5 mm
Height: 51.0 mm
