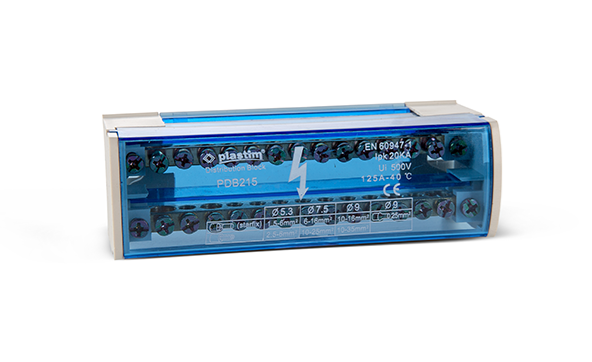

Phase-separating terminal block for DIN rail mounting, Plastim
The Plastim double-pole phase separation block is used for safe, structured, and clearly arranged branching of phase and neutral conductors in electrical distribution systems. The assembly consists of two separate, galvanically isolated brass conductive profiles (2 poles), each with 15 connection points of various diameters for optimal combination of main power supply, interconnection, and end circuits. The transparent protective housing allows visual inspection of the connection status while providing reliable protection against accidental contact. The block is designed for quick mounting on a standard 35 mm DIN rail or secure fastening with screws on a mounting plate.
Technical specifications
Product type: Distributor.
Number of poles: 2
Nominal current: 125 A
Number of connections per phase: 15
Total number of connections: 30 (2 × 15)
Connection configuration per pole: 11× ø 5.3 mm + 2× ø 7.5 mm + 2× ø 9.0 mm
Connection type: screw connection
Mounting method: 35 mm DIN rail / mounting plate
Dimensions
Length: 132.0 mm
Width: 45.5 mm
Height: 51.0 mm
