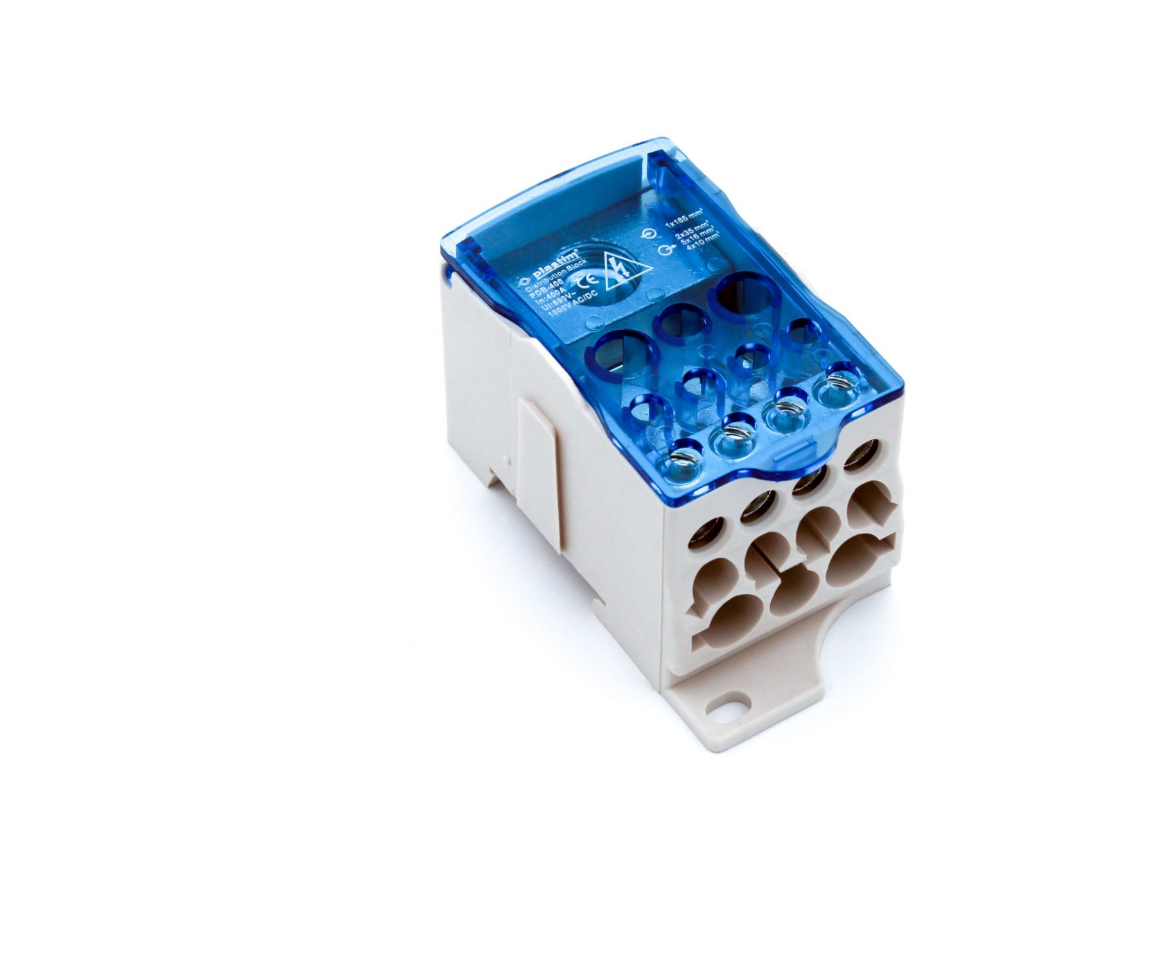

Phase distribution terminal block for DIN rail mounting, Plastim

The high-performance Plastim distribution block is used for safe and clear distribution of phase or neutral conductors in industrial distribution boards and main power supply points. This compact module allows connection of a single main power cable with a large cross-section (up to 185 mm²) and its reliable distribution into 11 separate output branches with three different capacities. The robust construction and high-quality conductive core ensure minimal contact resistance and 100% stability under full current load of 400 A. The plastic housing provides secure closure and protection against accidental contact. The block is designed for mounting on a standard 35 mm DIN rail or for attachment to a mounting plate using screws.

Technical parameters

  • Product type: Distribution block / terminal block

  • Rated current: 400 A

  • Number of inputs: 1

  • Number of outputs: 11

  • Input conductor cross-section: 1× 95 – 185 mm²

  • Output conductor cross-section:

    • 4× 2.5 – 10 mm²

    • 5× 2.5 – 16 mm²

    • 2× 6 – 35 mm²

  • Connection type: Screw

  • Mounting method: 35 mm DIN rail / mounting plate
