Plastim

Fan with filter + screw clamp, 30 (41) m3/h, 120x120, 230V 50/60Hz IP54 PTF1000T Plastim

In stock - 11 items available
SKU: PTF1000T
€29,52 including VAT

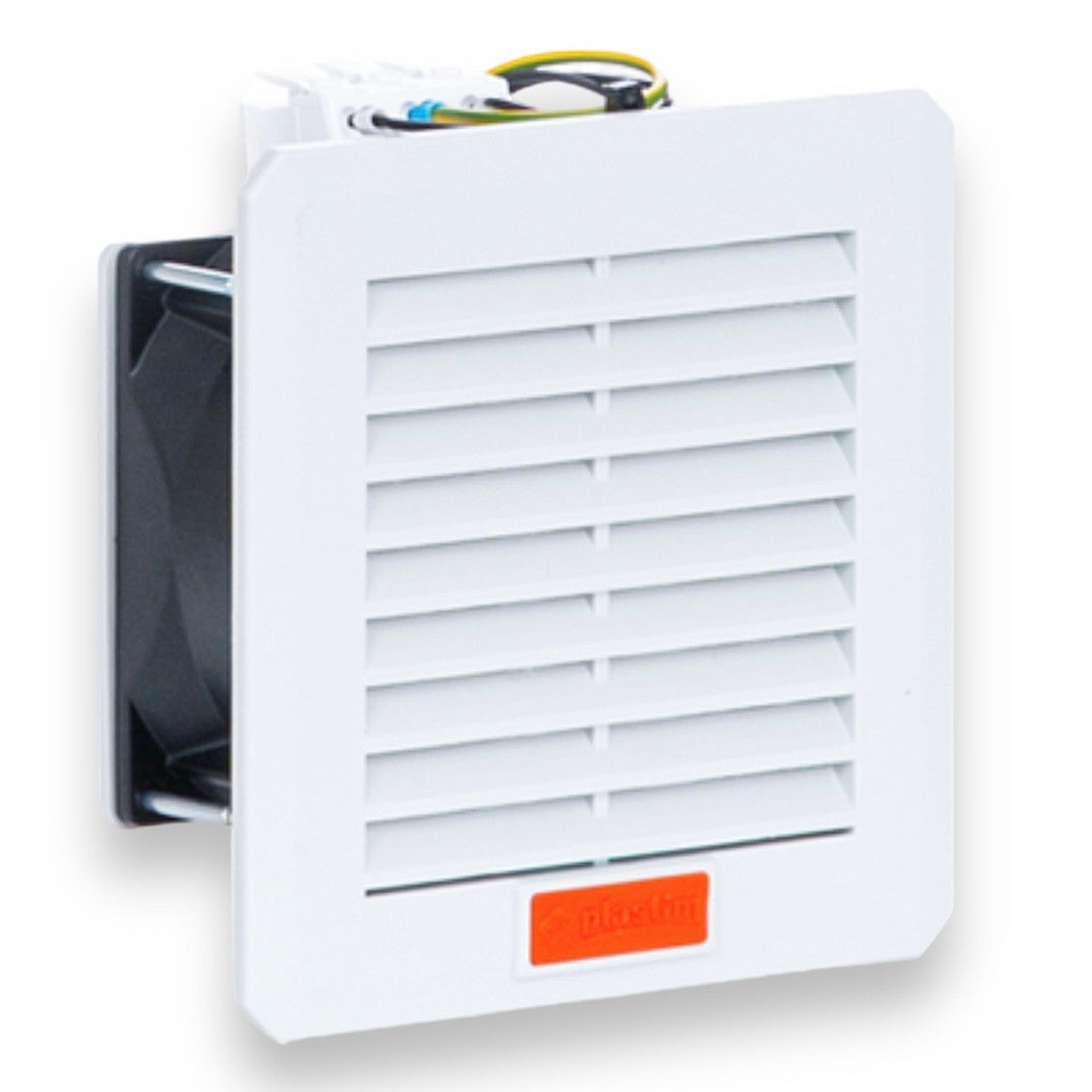

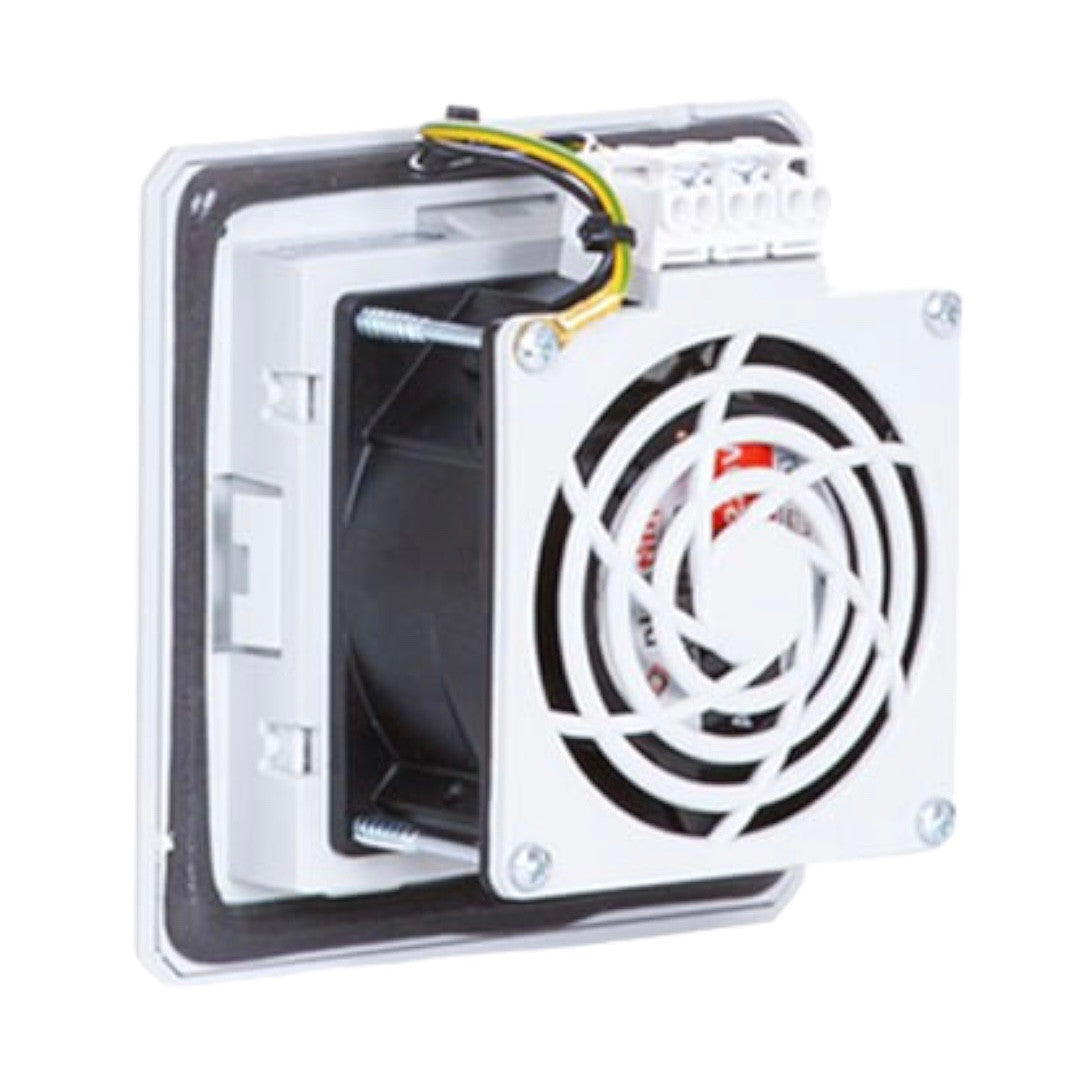

Ventilation grille with fan and filter, dimensions 120x120 mm, for installation in electrical panels, automation cabinets, ATMs or gaming terminals. PTF1000T, manufacturer Plastim (Türkiye)

It is used to suck outside air into electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels and gas stations. They are usually installed in the side walls of the housing to maintain the IP rating.

  • External dimensions: 210x210x58.5 mm
  • Installation size: 92x92mm
  • Volume flow: 30 (41) m3/h
  • Noise level: 28 (31) dB(A)
  • Bearing: bushing type bearing
  • Operating voltage: 220-230VAC, 50/60Hz
  • Current consumption: 0.08(0.07) A
  • Rated power: 14 (13) W
  • Electrical connection: 3-pole terminal 2.5 mm2
  • Flow direction: Outside to inside (can be changed)
  • Operating temperature: -10/+70 °C
  • Protection level: IP54
  • Plastic material: UL94 V0 ABS, flame retardant
  • Seal: Self-adhesive
  • Color: RAL 7035 (RAL 7032 on request)
  • Weight: 0.4 kg
  • Mounting: Fast Clip-on

To ensure automatic air exchange and temperature maintenance using this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller, both devices can be purchased on our website.
