Time inverse reverse cyclic relay – "left–right / up–down / forward–backward"

Product description

The inverse reverse cyclic time relay is designed for alternating switching of two independent loads. It allows operation in "left–right", "up–down", "forward–backward" modes and is also ideal for reversible operation of electric motors with ensured safety delay between individual activations.
Typical applications are automatic cycles in dishwashers, washing machines, door drives, hoists, conveyor belts, or moving systems.

Main functions

• Cyclic switching of two outputs according to preset times

• Modes:

  • left – right

  • up – down

  • forward – backward

• Built-in safety delay between activations

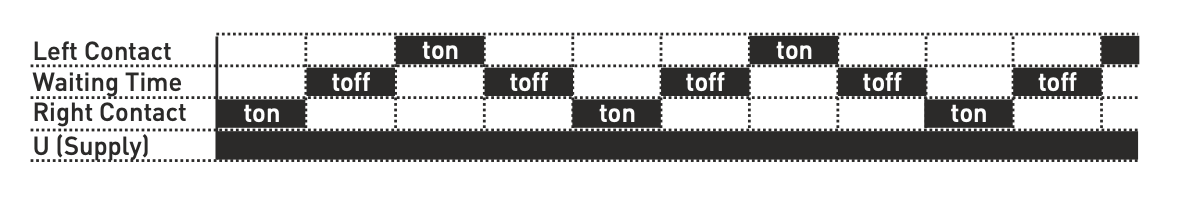

• Time adjustment Ton and Toff possible independently

• Adjustment range 0.1 s to 100 minutes for both times

• Suitable for controlling motors, actuators, valves, drives, and alternating loads

Application

• Reversible operation of electric motors

• Automatic "there–back" cycles

• Sliding mechanisms, lifting systems

• Ventilation and pump systems with dual modes

• Equipment for dishwashers, washing machines, conveyors

• Control of moving advertising elements or rotating devices

Installation

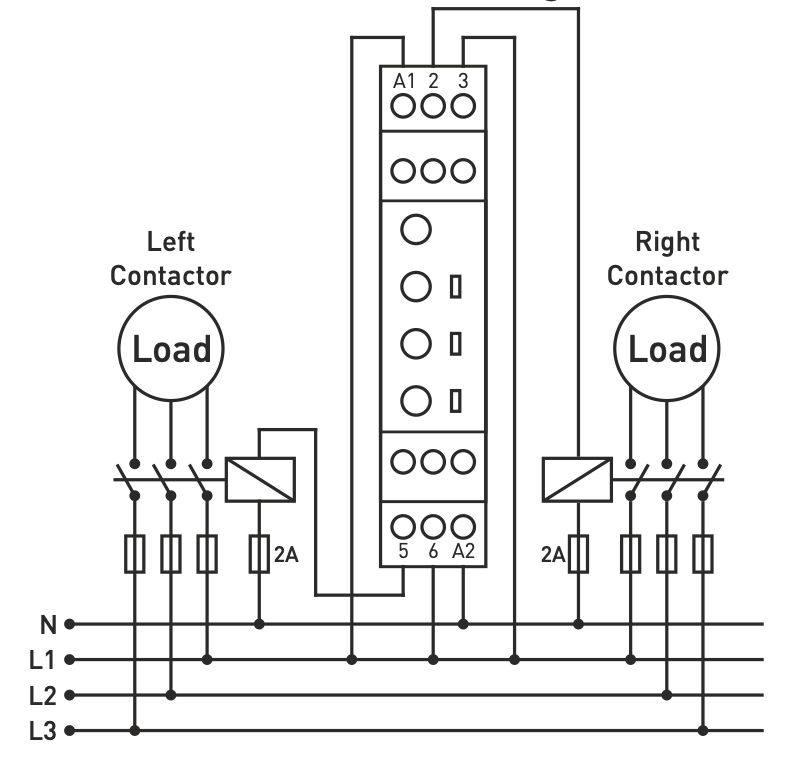

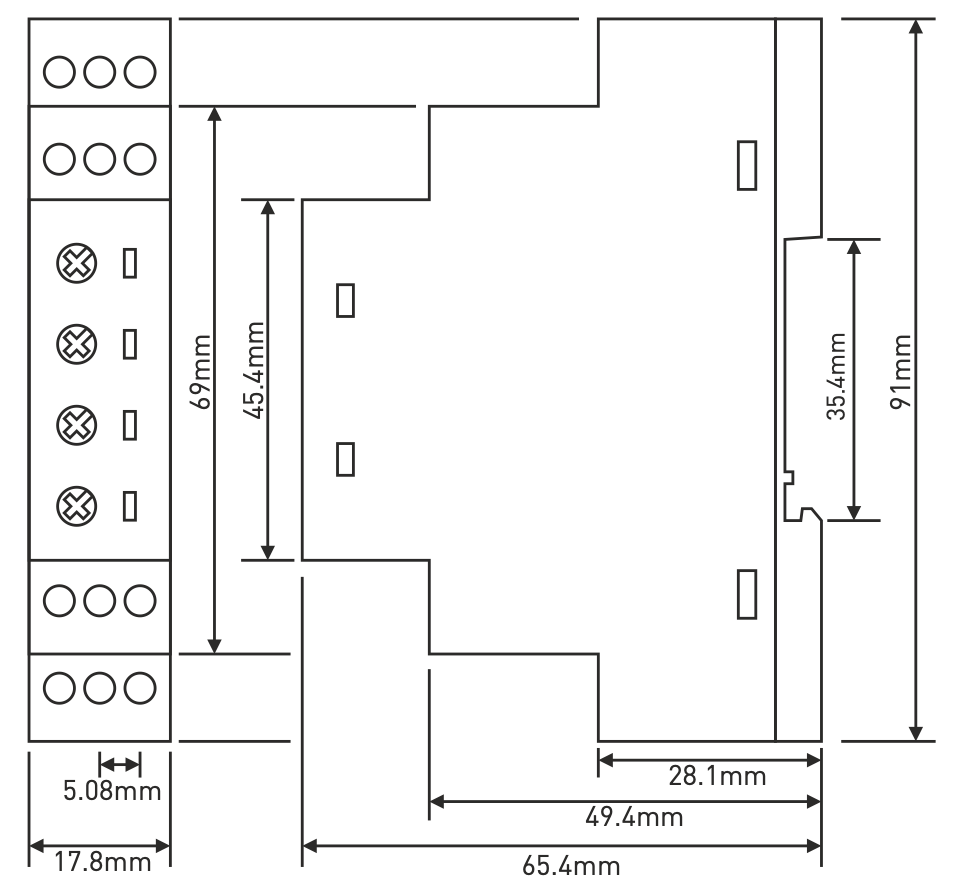

• Mounting on standard 35mm DIN rail

• Suitable for distribution cabinets, industrial cabinets, and automation systems
