Time delay relay, 12V - 240V AC/DC 1 / 10 / 100 sec min hour
Failed to load pickup availability

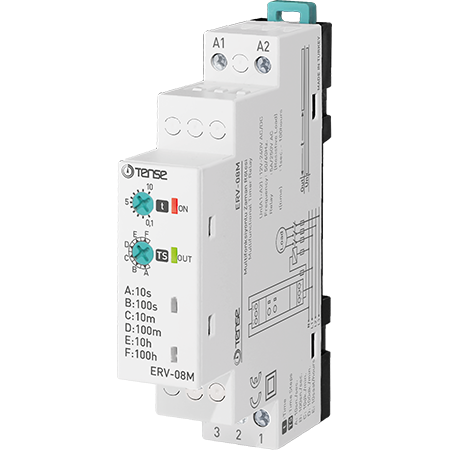

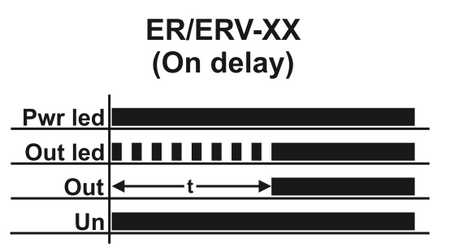

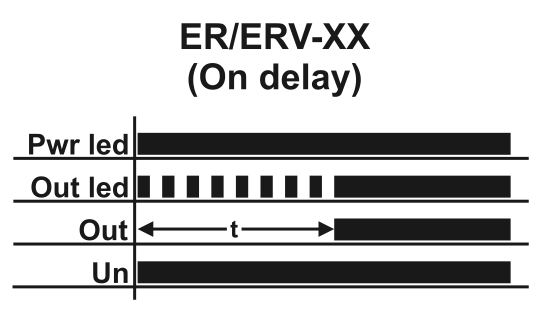

ON-DELAY single-function time relay 12V – 240V AC/DC with 1 changeover contact.
A delay relay is used to gradually turn on loads: electric boilers, stoves, radiators, etc., thus preventing power surges in the network and fuse blowouts due to high inrush current.
It can also be used to coordinate the switching on times of multiple devices in machines, appliances or other installations.
Time range:
A - 1-10 sec
B - 10-100 sec
C - 1-10 minutes
D - 10-100 minutes
E - 1-10 hours
F - 10-100 hours

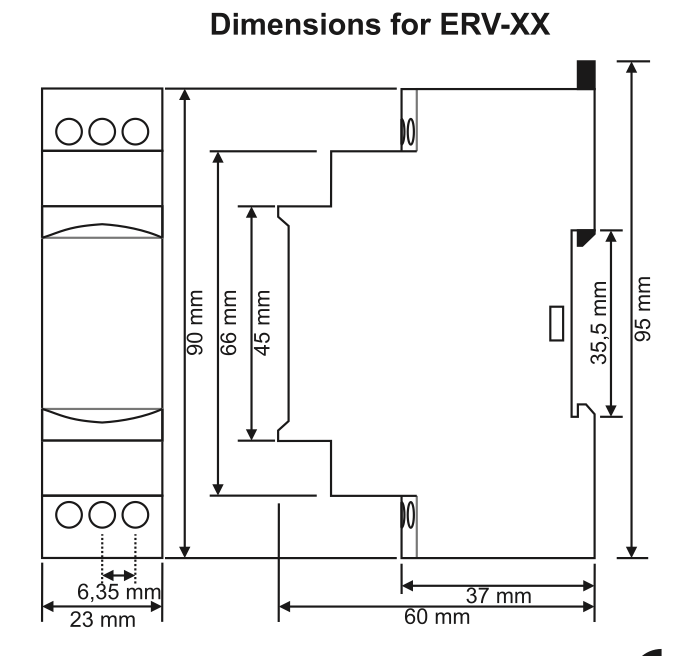

The time relay is mounted on a standard 35mm DIN rail.
